SKU: 6314NR-NTN

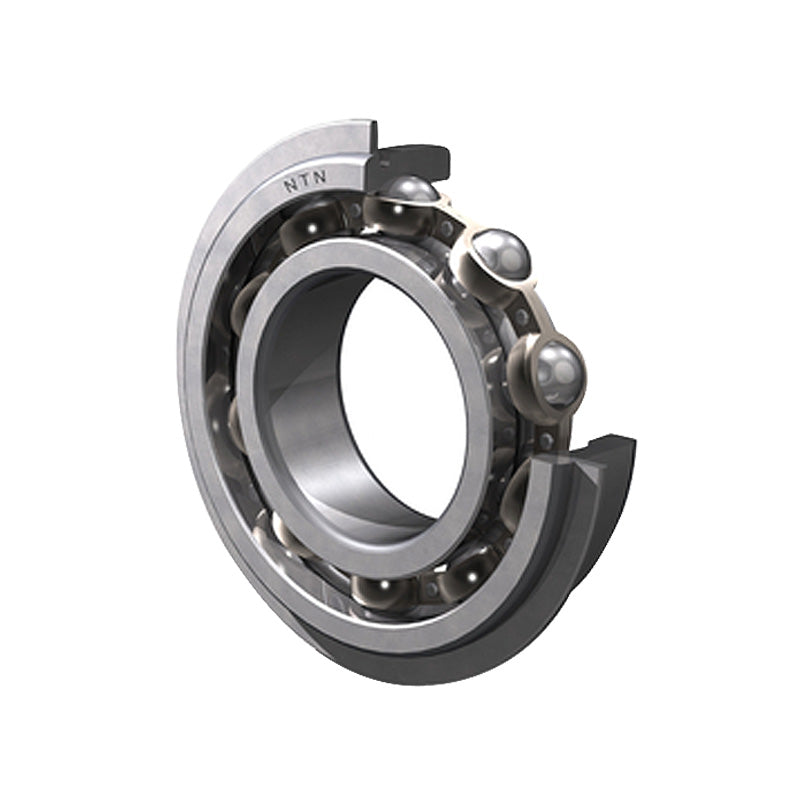

NTN 6314NR Open Type Deep Groove Ball Bearing with Snap Ring 70x150x35mm
NTN 6314NR Open Type Deep Groove Ball Bearing with Snap Ring 70x150x35mm
Regular price
€207,85
ex VAT
Regular price
Sale price
€207,85
ex VAT
Equivalent to: 6314NRCM 314KG 314SG 43314
In stock
Price Break
3+
€157,96
5+
€149,08
10+
€147,31
25+
€145,53
49+
€143,76
74+
€141,98
99+
€133,11
199+
€131,34
249+
€129,56
499+
€127,79
999+
€124,24
Quantity
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 70mm |
| D | 150mm |
| B | 35mm |
| r<sub>s</sub> min | 2.1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 115 kN |
| C<sub>or</sub> | 68 kN |
| C<sub>u</sub> | 5.1 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 4600 rpm |
| Oil | 5400 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 145.24mm |
| a Max. | 4.9mm |
| b Min. | 3.1mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 159.7mm |
| f Max. | 2.82mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 81mm |
| d<sub>a</sub> Max. | 92.5mm |
| D<sub>a</sub> Max. | 139mm |
| D<sub>X</sub> (approx) | 162mm |
| C<sub>Y</sub> Max. | 7.3mm |
| C<sub>Z</sub> Min. | 2.9mm |
| r<sub>as</sub> Max. | 2mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 2.52 kg |
