SKU: 6315-ZZ-CDX

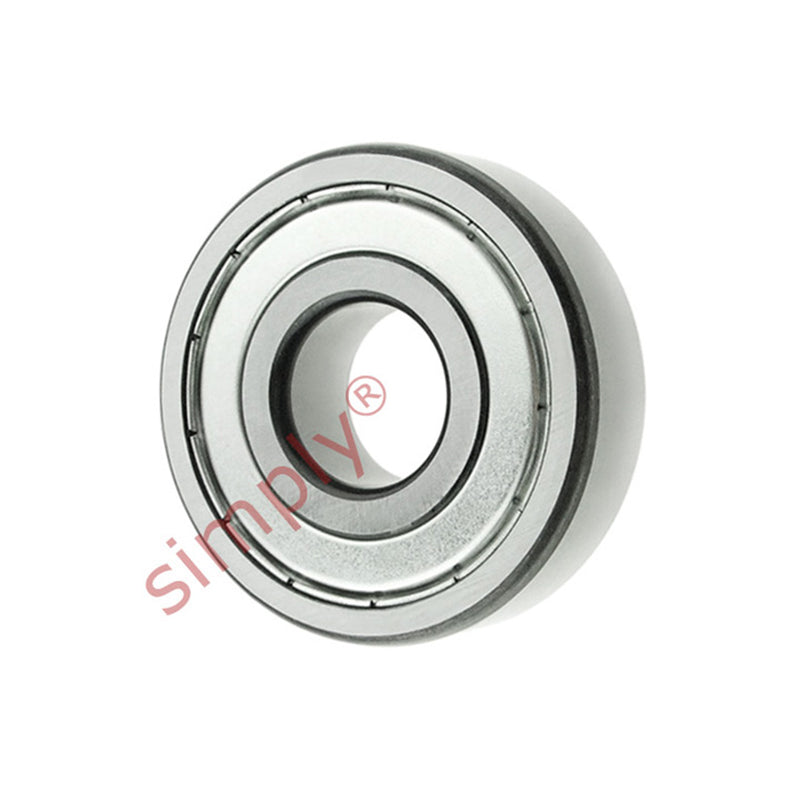

Codex 6315ZZ Metal Shielded Deep Groove Ball Bearing 75x160x37mm
Equivalent to: 6315ZZ 63152Z 63152ZR 6315ZZE 6315FF 6315DD 6315DDC 6315KDDC EL75ZZ EL752Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load C | 119 kN |
| Static load Co | 76.5 kN |
| Fatigue load limit Pu | 3 |
| Reference speed | 9000 rpm |
| Limiting speed | 4500 rpm |
| Weight | 3 kg |
| d1 | 101mm |
| d2 | 138mm |
| D2 | -mm |
| r1r2 min | 2.1mm |
| da min | 87mm |
| da max | -mm |
| Da max | 148mm |
| ra max | 2 |
| Calc factor kr | 0.03 |
| Calc factor Cor f0 | 13 |
