SKU: 6316-2RS1/C3-SKF

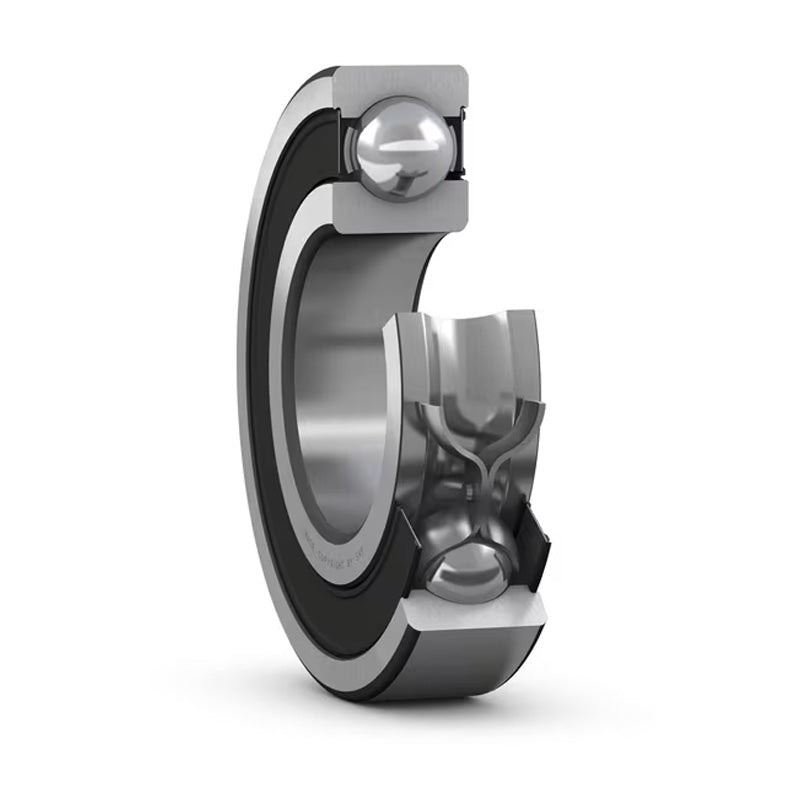

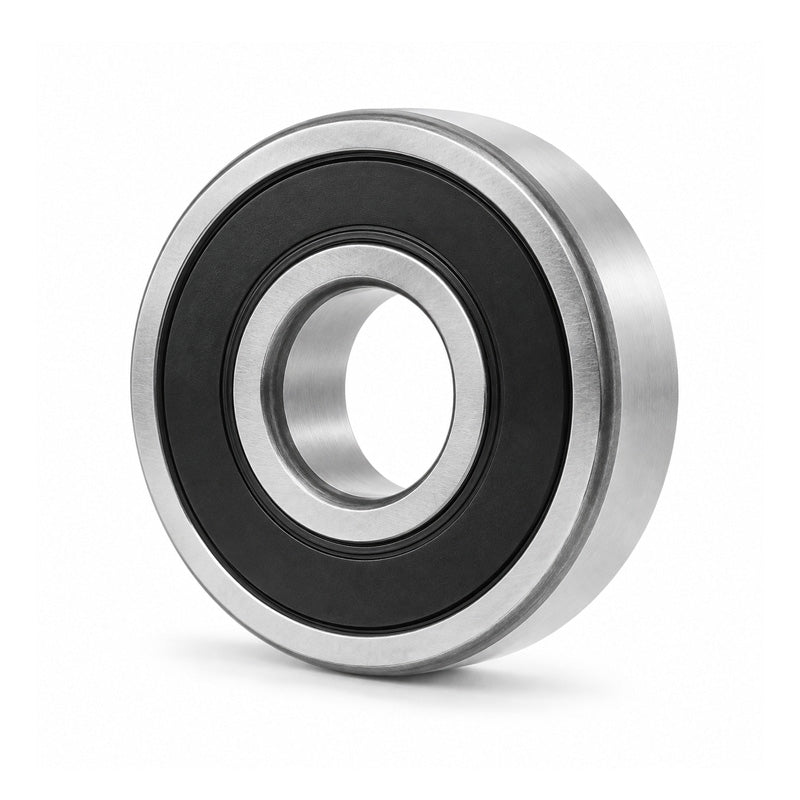

SKF 63162RS1C3 Rubber Sealed Deep Groove Ball Bearing 80x170x39mm
Equivalent to: 6316NSEC3 6316DUC3 6316RSC3 6316RSHC3 6316PC3 6316RSRC3 6316LUC3 63162NSEC3 6316DDUC3 63162RSC3 63162RSHC3 6316PPC3 63162RSRC3 6316LLU
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| Dynamic load C | 130 kN |
| Static load Co | 86.5 kN |
| Fatigue load limit Pu | 3.25 kN |
| Reference speed | 8500 rpm |
| Limiting speed | 2600 rpm |
| Weight | 3.6 kg |
| d1 | 108mm |
| d2 | 147mm |
| r1r2 min | 2.1mm |
| da min | 92mm |
| Da max | 158mm |
| ra max | 2mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
