SKU: 6316-ZZ-CDX

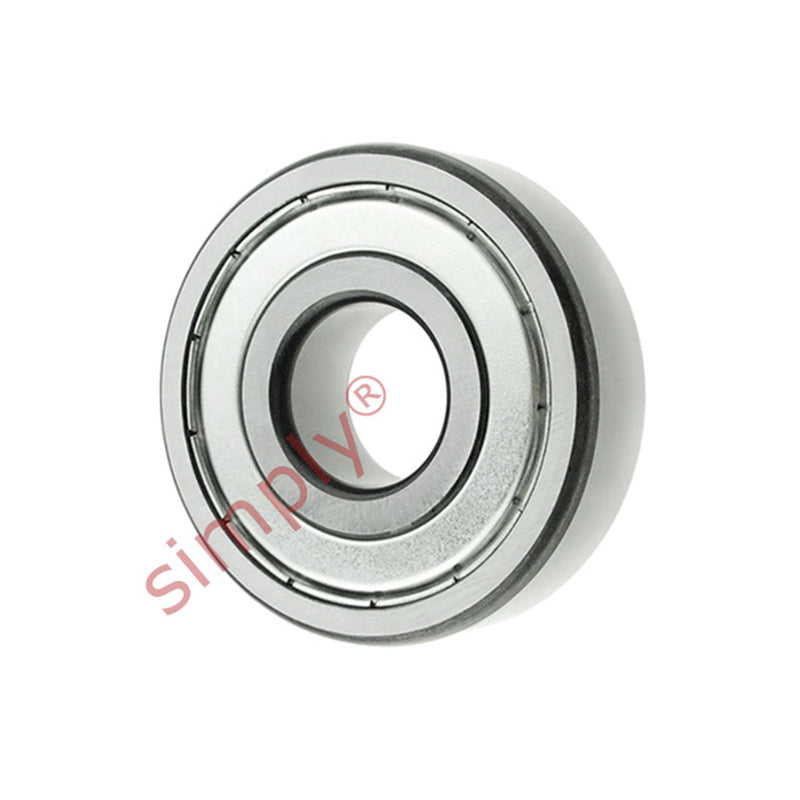

Codex 6316ZZ Metal Shielded Deep Groove Ball Bearing 80x170x39mm
Equivalent to: 6316ZZ 63162Z 63162ZR 6316ZZE 6316FF 6316DD 6316DDC 6316KDDC EL80ZZ EL802Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| Dynamic load C | 130 kN |
| Static load Co | 86.5 kN |
| Fatigue load limit Pu | 3.25 |
| Reference speed | 8500 rpm |
| Limiting speed | 4300 rpm |
| Weight | 3.6 kg |
| d1 | 108mm |
| d2 | 147mm |
| D2 | -mm |
| r1r2 min | 2.1mm |
| da min | 92mm |
| da max | -mm |
| Da max | 158mm |
| ra max | 2 |
| Calc factor kr | 0.03 |
| Calc factor Cor f0 | 13 |
