SKU: 6317-ZZ-CDX

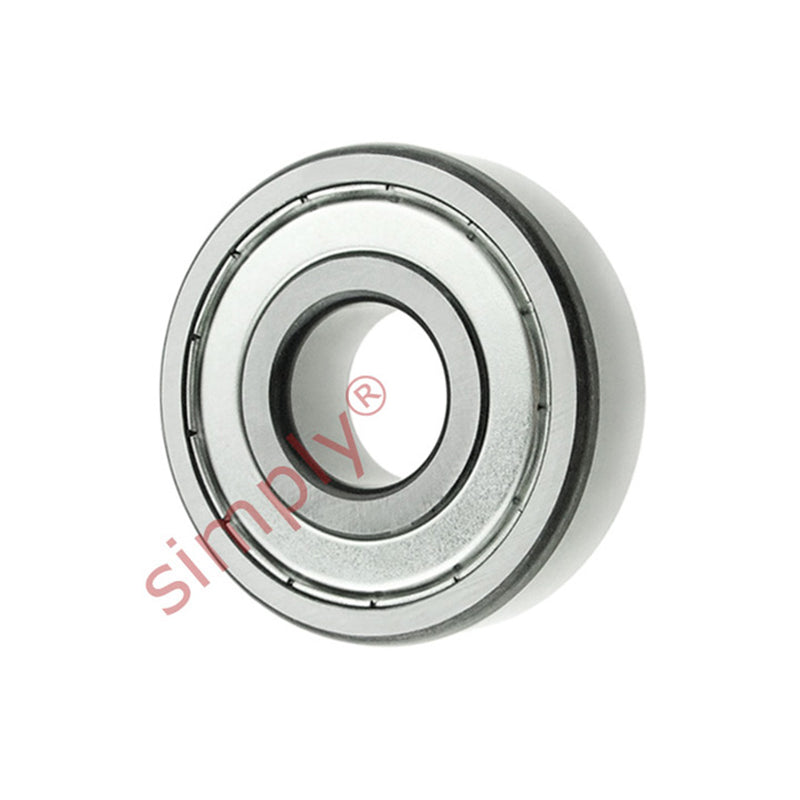

Codex 6317ZZ Metal Shielded Deep Groove Ball Bearing 85x180x41mm
Equivalent to: 6317ZZ 63172Z 63172ZR 6317ZZE 6317FF 6317DD 6317DDC 6317KDDC EL85ZZ EL852Z
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 180mm
- Width:
- 41mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 85mm |
|---|---|
| D | 180mm |
| B | 41mm |
| Dynamic load C | 140 kN |
| Static load Co | 96.5 kN |
| Fatigue load limit Pu | 3.55 |
| Reference speed | 8000 rpm |
| Limiting speed | 4000 rpm |
| Weight | 4.25 kg |
| d1 | 115mm |
| D2 | 155mm |
| r1r2 min | 3mm |
| da min | 99mm |
| Da max | 166mm |
| ra max | 2.5 |
| Calc factor kr | 0.03 |
| Calc factor Cor f0 | 13 |
