SKU: 6321-2Z/C3-SKF

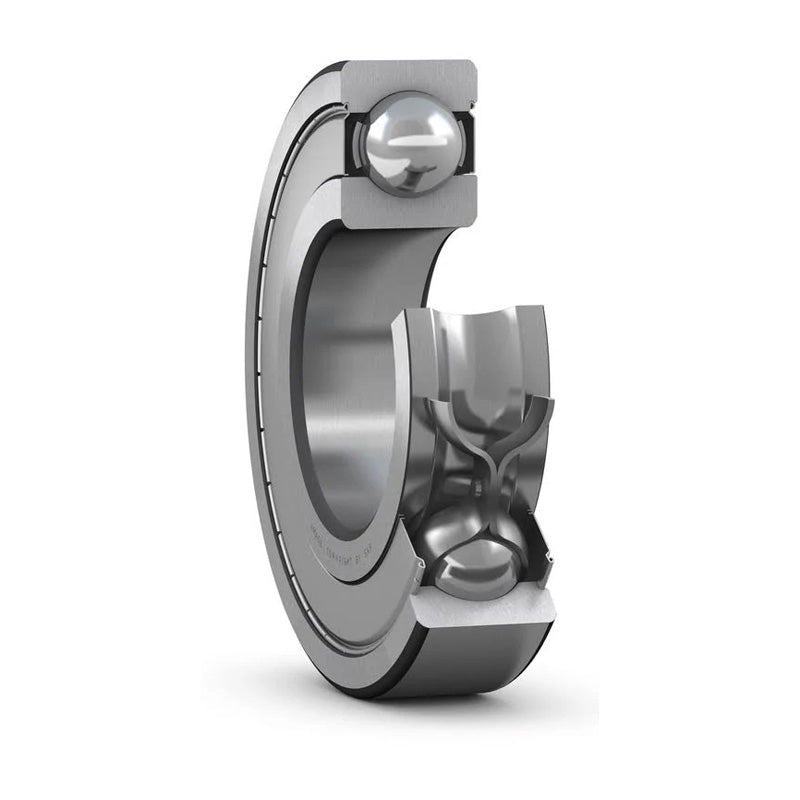

SKF 63212ZC3 Metal Shielded Deep Groove Ball Bearing 105x225x49mm
SKF 63212ZC3 Metal Shielded Deep Groove Ball Bearing 105x225x49mm
Equivalent to: 6321ZZEC3 6321ZZC3 6321.2ZC3 6321KDDC3 6321DDC3 63212ZRC3 6321FFC3
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 225mm
- Width:
- 49mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 105mm |
|---|---|
| D | 225mm |
| B | 49mm |
| Dynamic load C | 182 kN |
| Static load Co | 153 kN |
| Fatigue load limit Pu | 5.1 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 3200 rpm |
| Weight | 8.25 kg |
| d1 | 141mm |
| d2 | 0mm |
| D2 | 193mm |
| r1r2 min | 3mm |
| da min | 119mm |
| da max | 0mm |
| Da max | 211mm |
| ra max | 2.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 13 |
