SKU: 6328-NTN

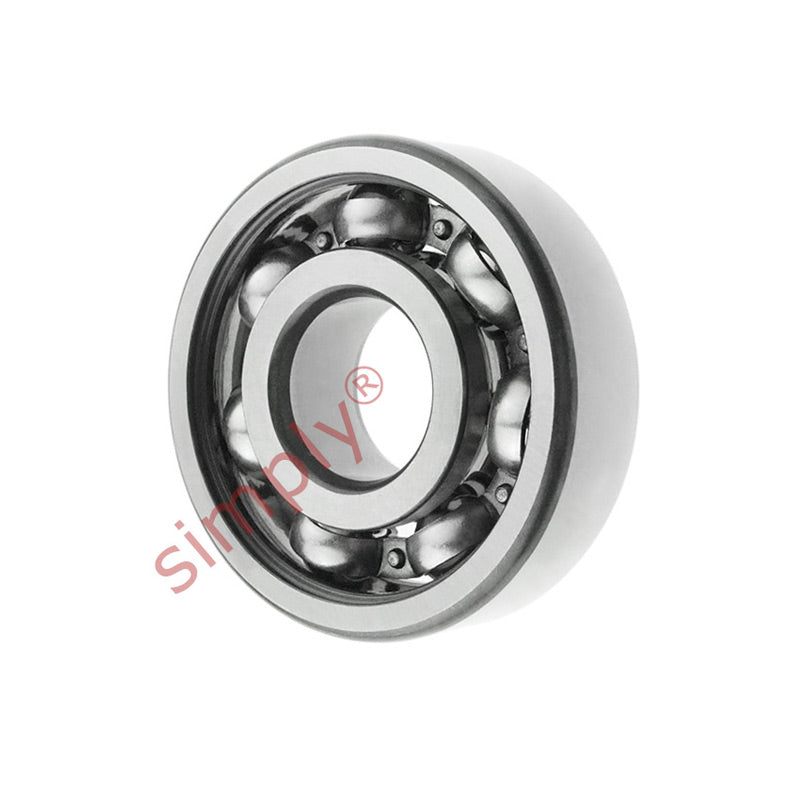

NTN 6328 Open Type Deep Groove Ball Bearing 140x300x62mm
NTN 6328 Open Type Deep Groove Ball Bearing 140x300x62mm
Regular price
€1.454,24
ex VAT
Regular price
Sale price
€1.454,24
ex VAT
Equivalent to: 6328CM 328K 1328 328KS 6328 3328 26B 140BC03
In stock
Price Break
3+
€1.105,16
5+
€1.043,07
10+
€1.030,65
25+
€1.018,24
49+
€1.005,82
74+
€993,40
99+
€931,31
199+
€918,90
249+
€906,48
499+
€894,06
999+
€869,23
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 300mm
- Width:
- 62mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 140mm |
| D | 300mm |
| B | 62mm |
| r<sub>s</sub> min | 4mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 280 kN |
| C<sub>or</sub> | 246 kN |
| C<sub>u</sub> | 13 kN |
| f<sub>0</sub> | 13.6 kN |
| Grease | 2200 rpm |
| Oil | 2600 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 156mm |
| D<sub>a</sub> Max. | 284mm |
| r<sub>as</sub> Max. | 3mm |
| Weight | 18.5 kg |
