SKU: 634-2RS1/C3-SKF

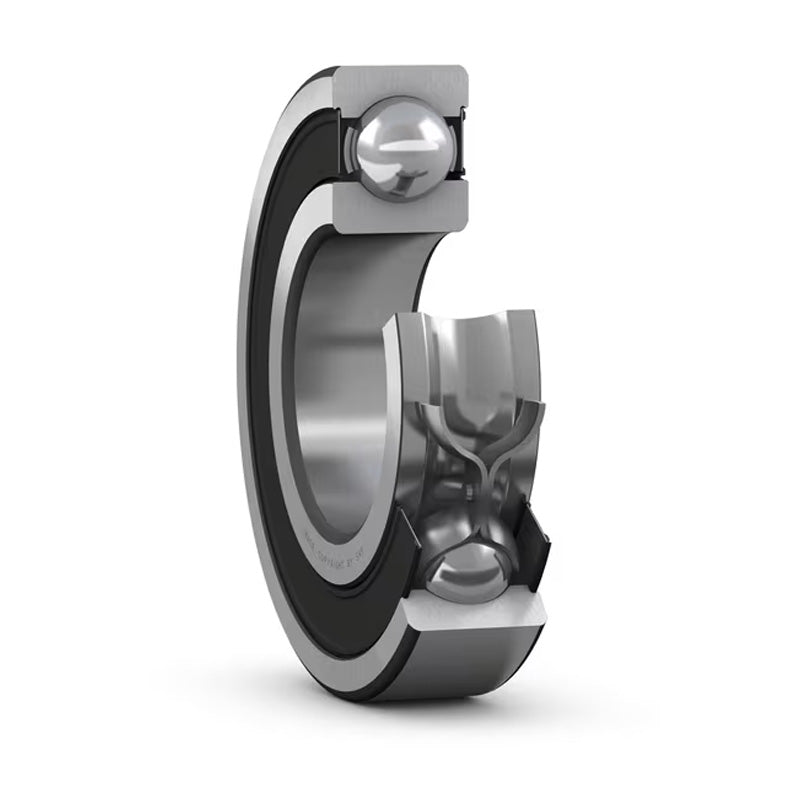

SKF 6342RS1C3 Rubber Sealed Deep Groove Ball Bearing 4x16x5mm
SKF 6342RS1C3 Rubber Sealed Deep Groove Ball Bearing 4x16x5mm
Equivalent to: 634NSEC3 634DUC3 634RSC3 634RSHC3 634PC3 634RSRC3 634LUC3 6342NSEC3 634DDUC3 6342RSC3 6342RSHC3 634PPC3 6342RSRC3 634LLU
Out of stock
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 16mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 4mm |
|---|---|
| D | 16mm |
| B | 5mm |
| Dynamic load C | 1.11 kN |
| Static load Co | 0.38 kN |
| Fatigue load limit Pu | 0.016 kN |
| Reference speed | 130000 rpm |
| Limiting speed | 28000 rpm |
| Weight | 0.0108 kg |
| d1 | 8.4mm |
| D2 | 13.3mm |
| r1r2 min | 0.3mm |
| da min | 6.4mm |
| Da max | 13.6mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.03 |
| Calculation factor f0 | 8.4 |
