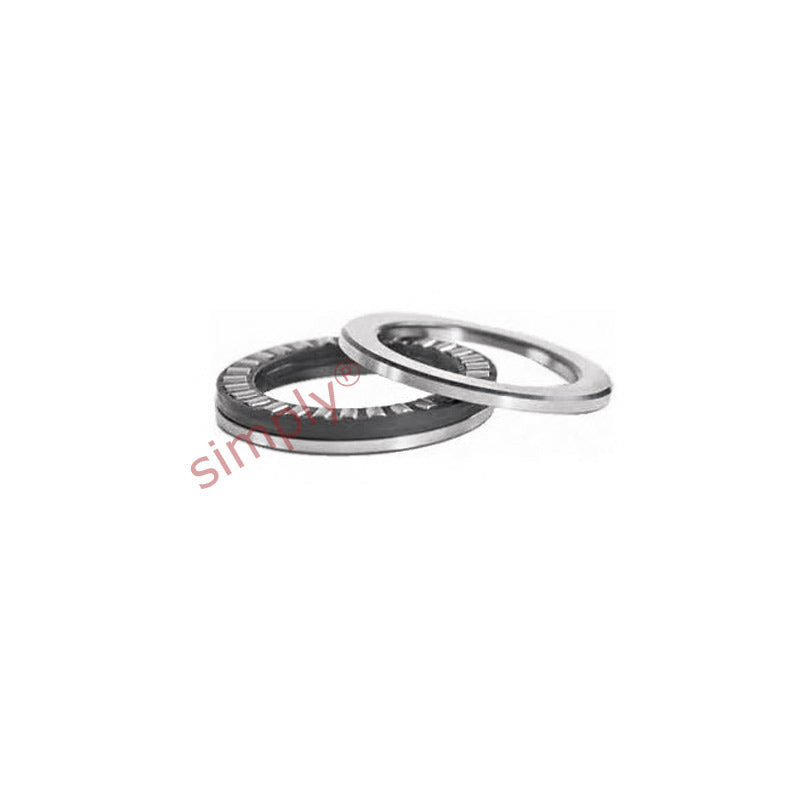

Major Brand 634055 Cylindrical Roller Thrust Bearing 780x890x50mm
Major Brand 634055 Cylindrical Roller Thrust Bearing 780x890x50mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 780mm
- Outside Diameter:
- 890mm
- Width:
- 50mm
Technical
Technical
| d | 780mm |
|---|---|
| D | 890mm |
| H | 50mm |
| Dynamic load C | 1220 kN |
| Static load Co | 10000 kN |
| Fatigue load limit Pu | 570 kN |
| Min load factor A | 8 |
| Reference speed | 260 rpm |
| Limiting speed | 530 rpm |
| Weight | 52 kg |
