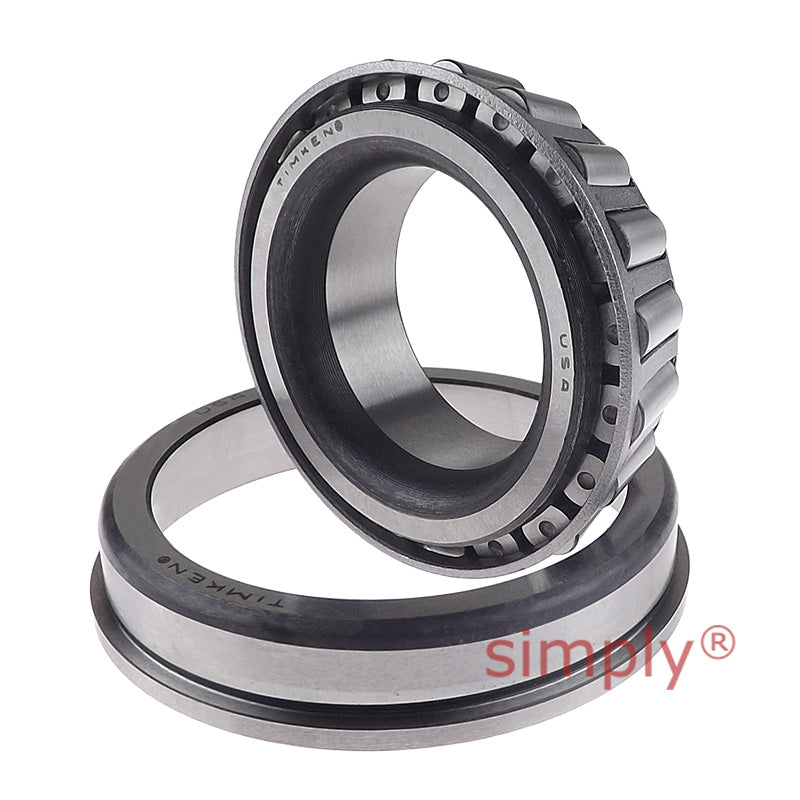

Timken 6375/6320B TSF Single-Row Taper Roller Bearing 2.25x5.3447x2.125 inch
Timken 6375/6320B TSF Single-Row Taper Roller Bearing 2.25x5.3447x2.125 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 135.76mm = 5.345 inch
- Width:
- 53.98mm = 2.125 (2-1/8) inch
Technical
Technical
| d | 57.15mm = 2.25 inch |
|---|---|
| D | 135.755mm = 5.3447 inch |
| T1 | 17.462mm = 0.6875 inch |
| Dynamic (1) C1 | 298000N |
| Factors (5) e | 0.32 |
| Factors (5) Y | 1.85 |
| Dynamic (2) C90 | 77200N |
| Dynamic (2) Ca90 | 42900N |
| Factors (5) K | 1.8 |
| Static Co | 404000N |
| Bearing B | 56.007mm = 2.205 inch |
| Bearing C | 44.45mm = 1.75 inch |
| Bearing a(3) | -19.3mm = -0.76 inch |
| Bearing D1 | 143.579mm = 5.6527 inch |
| Bearing C2 | 7.938mm = 0.3125 inch |
| Shaft max shaft fillet radius R(4) | 4.3mm = 0.17 inch |
| Shaft backing shoulder diameter da | 72mm = 2.83 inch |
| Shaft backing shoulder diameter db | 80mm = 3.15 inch |
| Housing backing shoulder diameter Da | 126mm = 4.96 inch |
| G1 | 124 |
| G2 | 22.4 |
| Cg | 0.0827 |
