SKU: 6407-NR-C3-FAG

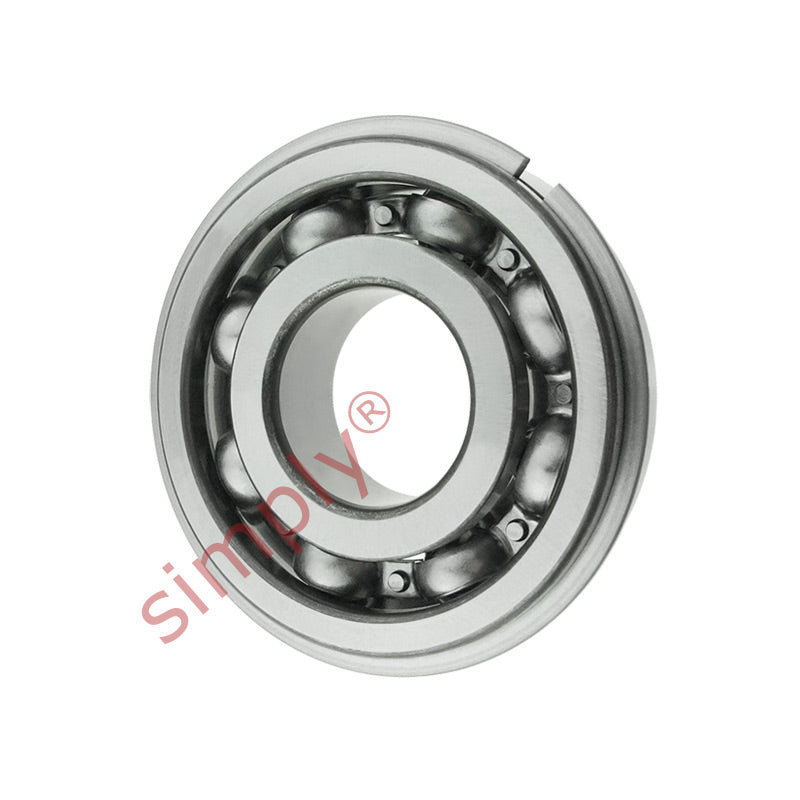

FAG 6407NRC3 Deep Groove Ball Bearing with Snap Ring 35x100x25mm
FAG 6407NRC3 Deep Groove Ball Bearing with Snap Ring 35x100x25mm
Out of stock
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 35mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dyamic load C | 55.3 kN |
| Static load Co | 31 kN |
| Fatigue load limit Pu | 1.29 kN |
| Reference speed | 16000 rpm |
| Limiting speed | 10000 rpm |
| Mass | 0.95 kg |
| d1 | 57.4mm |
| d2 | 79.5mm |
| r1r2 min | 1.5mm |
| da min | 46 |
