SKU: 6413-NR-FAG

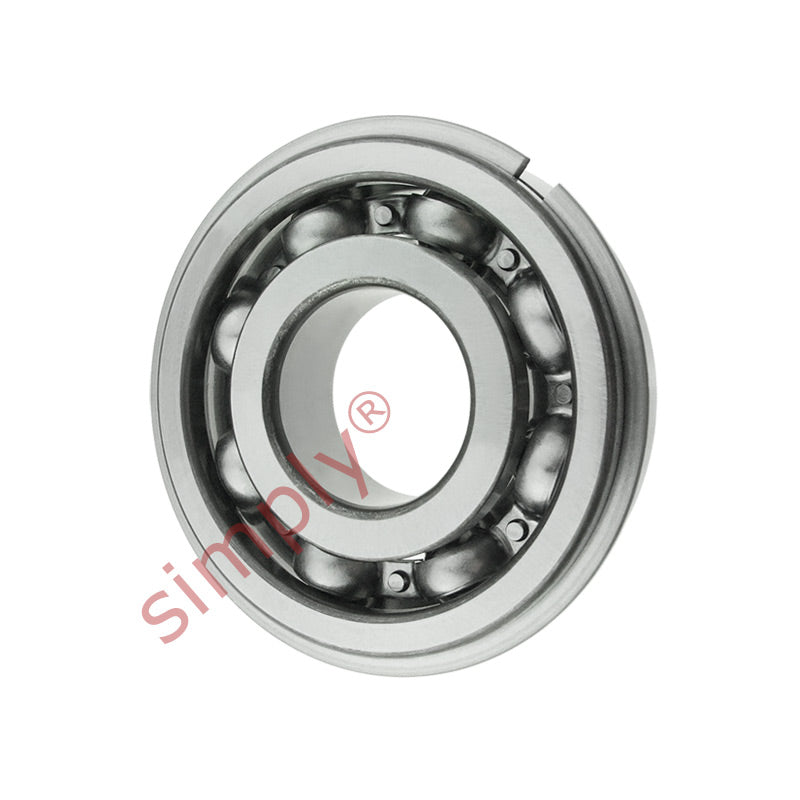

FAG 6413NR Deep Groove Ball Bearing with Snap Ring 65x160x37mm
FAG 6413NR Deep Groove Ball Bearing with Snap Ring 65x160x37mm
Regular price
€389,81
ex VAT
Regular price
Sale price
€389,81
ex VAT
In stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dyamic load C | 119 kN |
| Static load Co | 78 kN |
| Fatigue load limit Pu | 3.15 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6000 rpm |
| Mass | 3.3 kg |
| d1 | 94mm |
| d2 | 131mm |
| r1r2 min | 2.1mm |
| da min | 79 |
