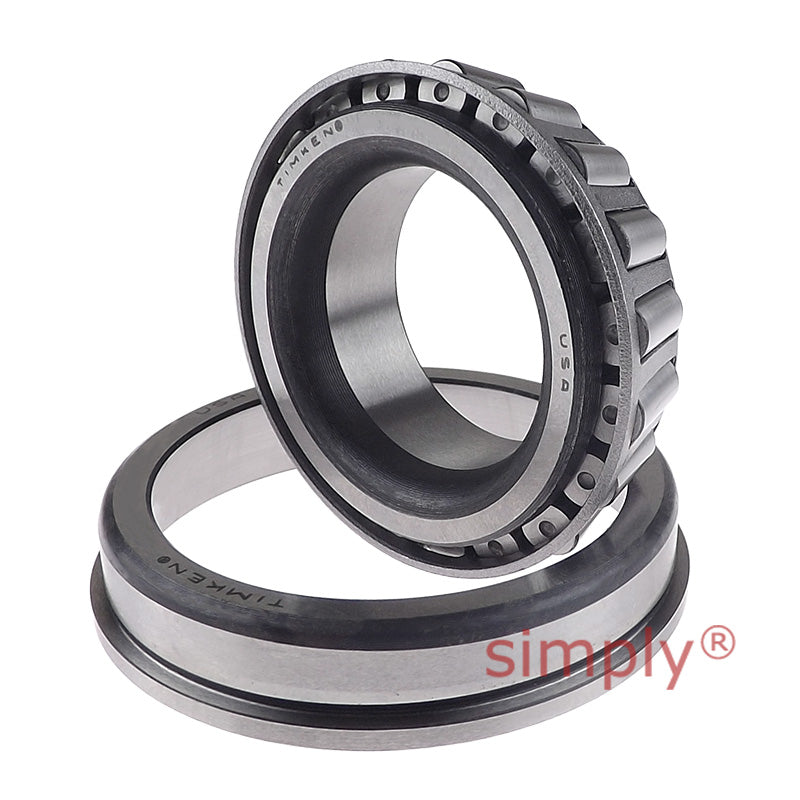

• Timken 6460/6420B TSF Single-Row Taper Roller Bearing 2.875x5.875x2.125 inch
1 1

SKU: 6460/6420B-TIM

Timken 6460/6420B TSF Single-Row Taper Roller Bearing 2.875x5.875x2.125 inch

Timken 6460/6420B TSF Single-Row Taper Roller Bearing 2.875x5.875x2.125 inch
€1.143,40 ex VAT
€1.143,40 ex VAT
Sale Sold out

In stock

Price Break
10+ €868,94
20+ €820,12
30+ €810,36
40+ €800,59
50+ €790,83
75+ €781,07
100+ €732,25
200+ €722,49
250+ €712,72
500+ €702,96
1000+ €683,43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
73.03mm = 2.875 (2-7/8) inch
Outside Diameter:
149.23mm = 5.875 (5-7/8) inch
Width:
53.98mm = 2.125 (2-1/8) inch
Technical
d 73.025mm = 2.875 inch
D 149.225mm = 5.875 inch
T1 17.462mm = 0.6875 inch
Dynamic (1) C1 321000N
Factors (5) e 0.36
Factors (5) Y 1.66
Dynamic (2) C90 83300N
Dynamic (2) Ca90 51600N
Factors (5) K 1.61
Static Co 463000N
Bearing B 54.229mm = 2.135 inch
Bearing C 44.45mm = 1.75 inch
Bearing a(3) -15mm = -0.59 inch
Bearing D1 157.061mm = 6.1835 inch
Bearing C2 7.938mm = 0.3125 inch
Shaft max shaft fillet radius R(4) 3.5mm = 0.14 inch
Shaft backing shoulder diameter da 87mm = 3.43 inch
Shaft backing shoulder diameter db 93mm = 3.66 inch
Housing backing shoulder diameter Da 140mm = 5.51 inch
G1 158
G2 29.1
Cg 0.0931
