SKU: 65x75x6_UOP_NAK

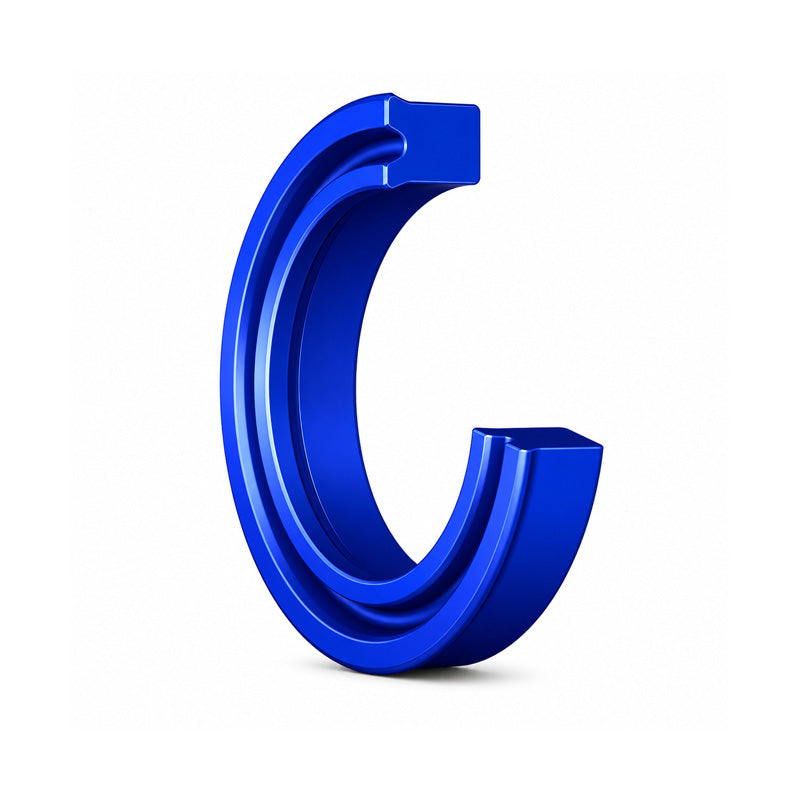

NAK 65x75x6mm UOP Polyurethane Piston Seal - Allow 7-10 Days
- Regular price
- €4.54 ex VAT
- Sale price
- €4,54
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
€4.04
19
€3.81
29
€3.77
39
€3.72
49
€3.68
74
€3.63
99
€3.41
199
€3.36
249
€3.31
499
€3.27
999
€3.18
Description
NAK UOP Piston Seals: The UOP piston seal from NAK is a high-performance, dual-lip polyurethane seal designed for use in dynamic hydraulic applications. Engineered for installation in both single-acting and double-acting cylinders, it delivers outstanding sealing performance, low friction, and long-term fluid retention under a wide range of pressures and operating conditions.
Benefits: Easy installation, stable performance under fluctuating pressures, excellent sealing efficiency
Technical
| d | = | 65mm |
| D | = | 75mm |
| L | = | 7mm |
| h | = | 6mm |
| C | = | 2.5mm |
| Inside Diameter Tolerance | = | h10 |
| Outside Diameter Tolerance | = | H9 |
| Length Tolerance | = | 0.2mm |
| Pressure (max) | = | 40 Mpa |
| Sliding Speed (max) | = | 0.5 m/s |
| Temperature | = | -40 Deg C to +100 Deg C |
| Colour | = | Blue |
