SKU: 663/654D/X4S663-TIM

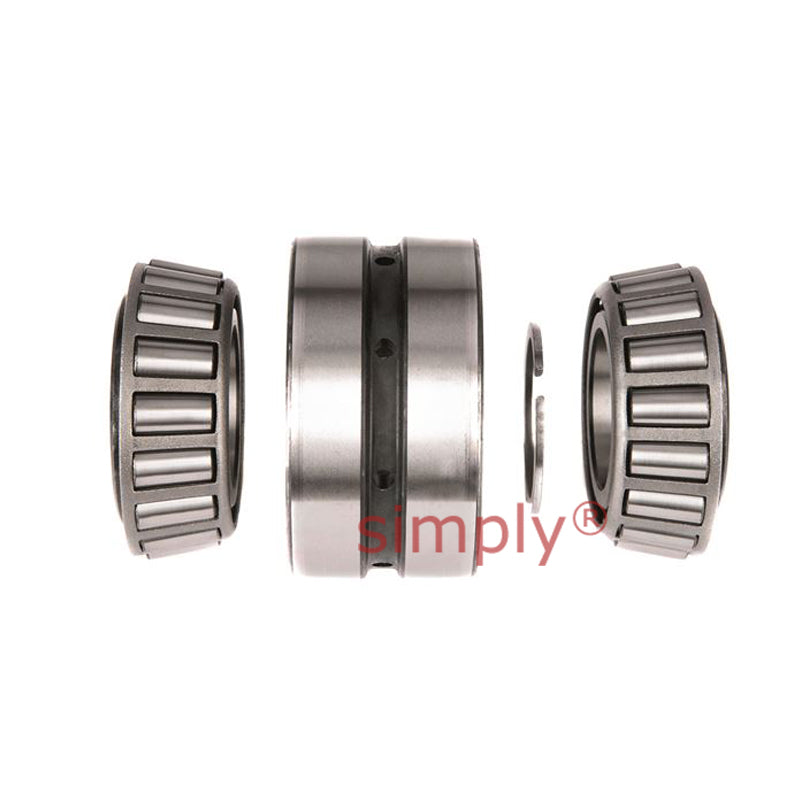

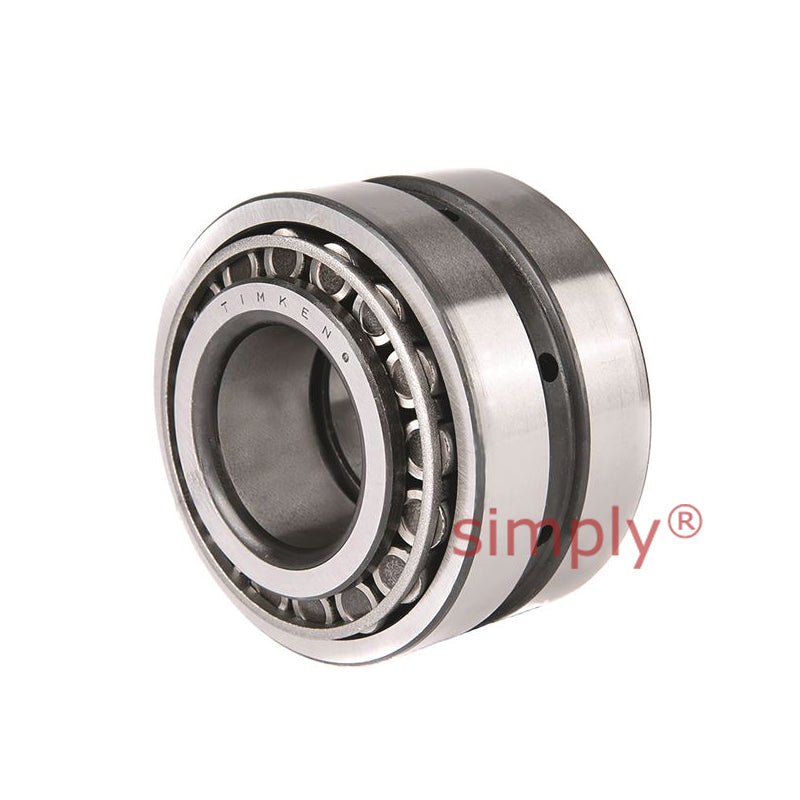

Timken 663/654D/X4S663 TDO Double Outer Race Taper Roller Bearing 3.25x6x3.75x3 inch
Timken 663/654D/X4S663 TDO Double Outer Race Taper Roller Bearing 3.25x6x3.75x3 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 82.55mm = 3.25 inch
- Outside Diameter:
- 152.40mm = 6 inch
- Width:
- 95.25mm = 3.75 inch
Technical
Technical
| d | 82.55mm = 3.25 inch |
|---|---|
| D | 152.4mm = 6 inch |
| T | 95.25mm = 3.75 inch |
| C | 76.2mm = 3 inch |
| Dynamic (1) C1 | 398000N |
| Factors (5) e | 0.41 |
| Factors (5) Y1 | 1.65 |
| Factors (5) Y2 | 2.46 |
| Dynamic (2) C90 | 59300N |
| Dynamic (2) Ca90 | 41500N |
| Dynamic (2) C90(2) | 103000N |
| Factors (5) K | 1.43 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 99mm = 3.9 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 141mm = 5.55 inch |
| G1 | 137 |
| G2 | 27.3 |
| Cg | 0.0919 |
