SKU: 6800-NTN

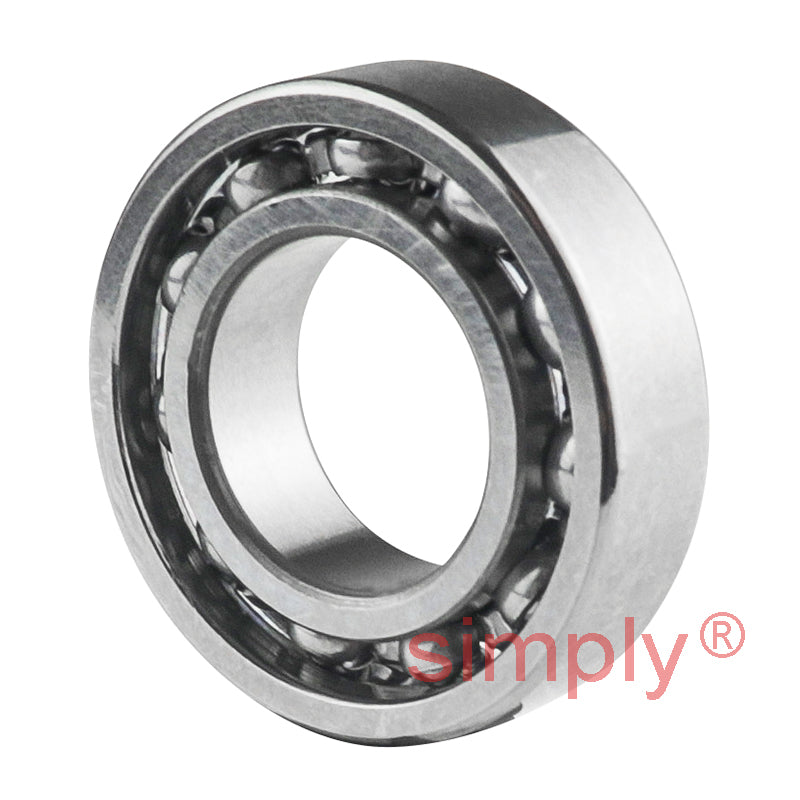

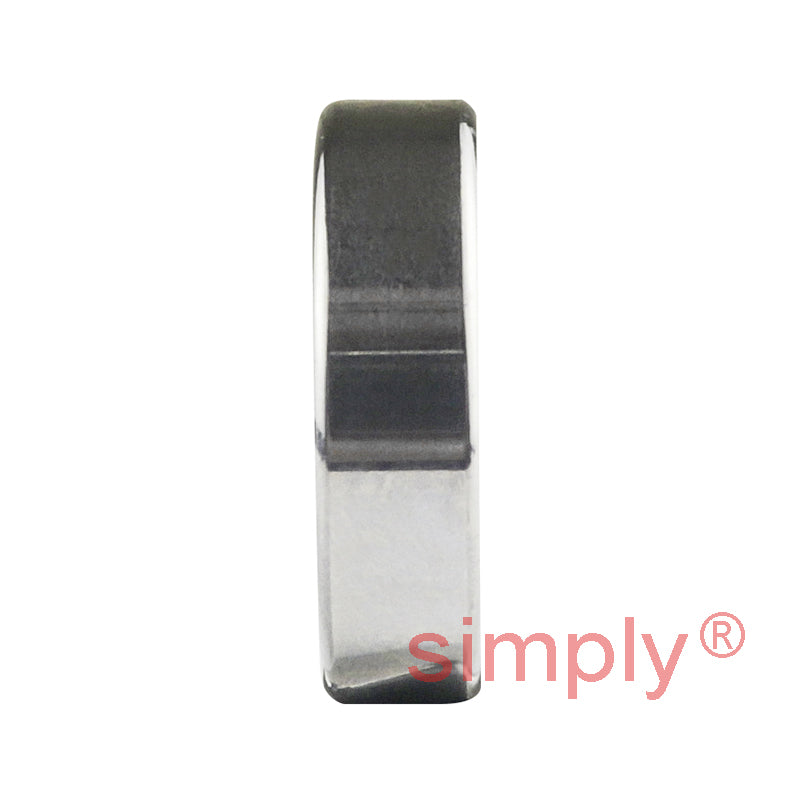

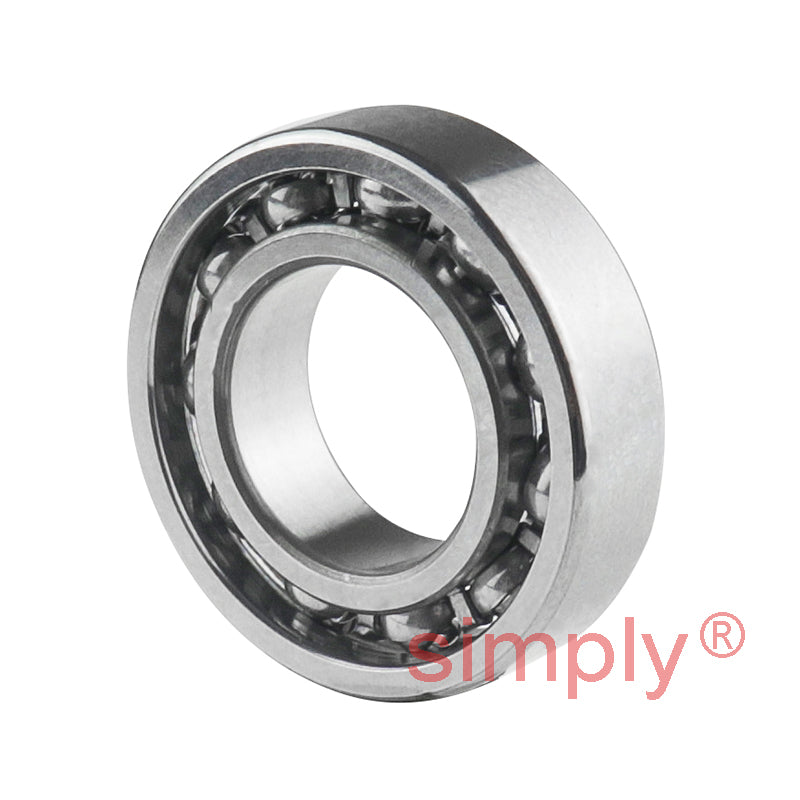

NTN 6800 Open Type Deep Groove Ball Bearing 10x19x5mm
NTN 6800 Open Type Deep Groove Ball Bearing 10x19x5mm
Regular price
€11,52
ex VAT
Regular price
Sale price
€11,52
ex VAT
Equivalent to: 6800CM 61800CM 61800T 61800 1800S L1910 61800
In stock
Price Break
3+
€8,76
5+
€8,27
10+
€8,17
25+
€8,07
49+
€7,97
74+
€7,87
99+
€7,38
199+
€7,28
249+
€7,18
499+
€7,08
999+
€6,89
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 10mm |
| D | 19mm |
| B | 5mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 2.03 kN |
| C<sub>or</sub> | 0.925 kN |
| C<sub>u</sub> | 0.072 kN |
| f<sub>0</sub> | 14.8 kN |
| Grease | 32000 rpm |
| Oil | 38000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 12mm |
| D<sub>a</sub> Max. | 17mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.005 kg |
