SKU: 6802-ZZE/C3-NACHI

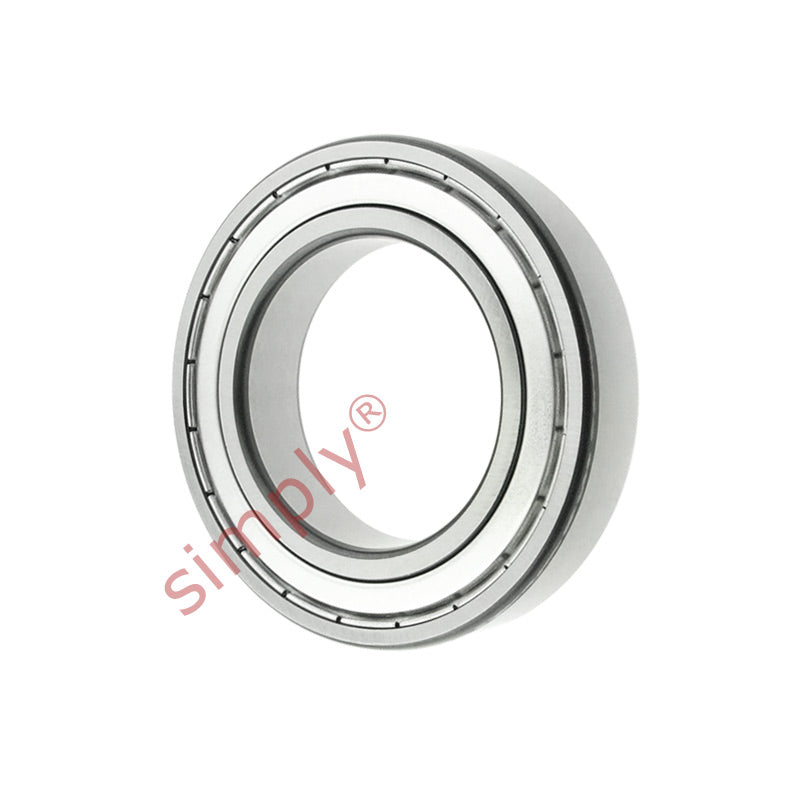

NACHI 6802ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 15x24x5mm
NACHI 6802ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 15x24x5mm
Equivalent to: 6802ZZC3 68022ZC3 6802.2ZC3 6802KDDC3 6802DDC3 68022ZRC3 6802FFC3 61802ZZEC3 61802ZZC3 618022ZC3 61802.2ZC3 61802KDDC3 61802DDC3 618022ZRC3 61802FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 15mm |
|---|---|
| Outside Diameter D | 24mm |
| Width B | 5mm |
| Min radius r | 0.3mm |
| Dynamic load | 2080 kN |
| Static load | 1260 kN |
| Max speed | 28000 rpm |
| da min | 17mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Weight | 0.007 kg |
