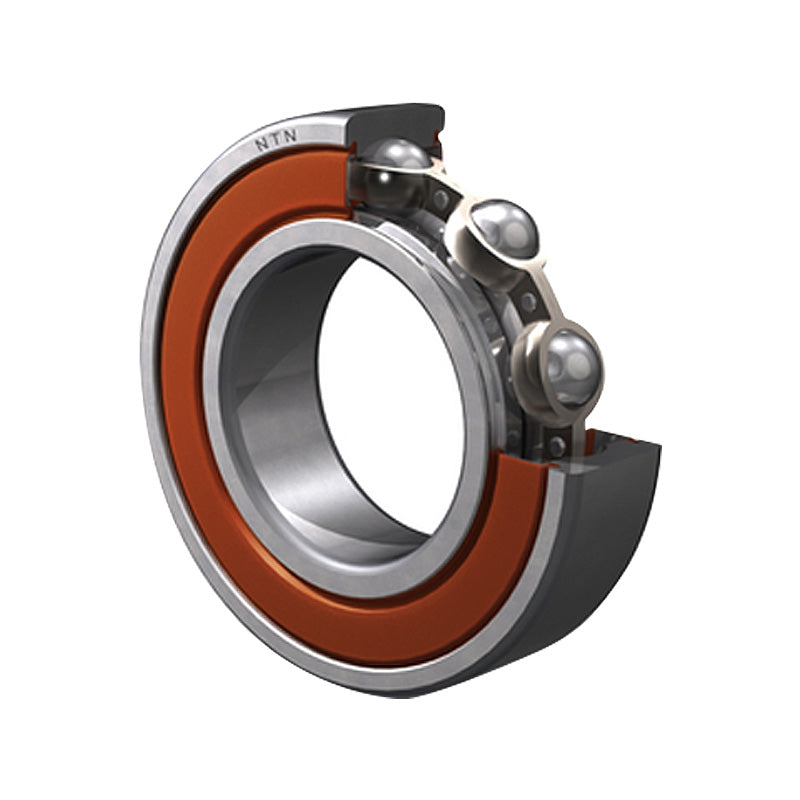

NTN 6802LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 15x24x5mm
Equivalent to: 6802LLUCM 61802LLUCM 6802LLU 61802LLU 6802NSE 6802DU 6802RS 6802RSH 6802P 6802RSR 6802LU 68022NSE 6802DDU 68022RS 6802-2RS 68022RS1 68022RSH 6802PP 68022RSR 6802LLU 6802RS2 68022RS2 68022RSL 6802LFS 6802EE 1802SZZ 6802DD
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 5mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 15mm |
| D | 24mm |
| B | 5mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 2.3 kN |
| C<sub>or</sub> | 1.26 kN |
| C<sub>u</sub> | 0.091 kN |
| f<sub>0</sub> | 15.8 kN |
| Speed | 17000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 17mm |
| d<sub>a</sub> Max. | 17.5mm |
| D<sub>a</sub> Max. | 22mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight Kg | 0.007 kg |
