SKU: 6815LLU/5K-NTN

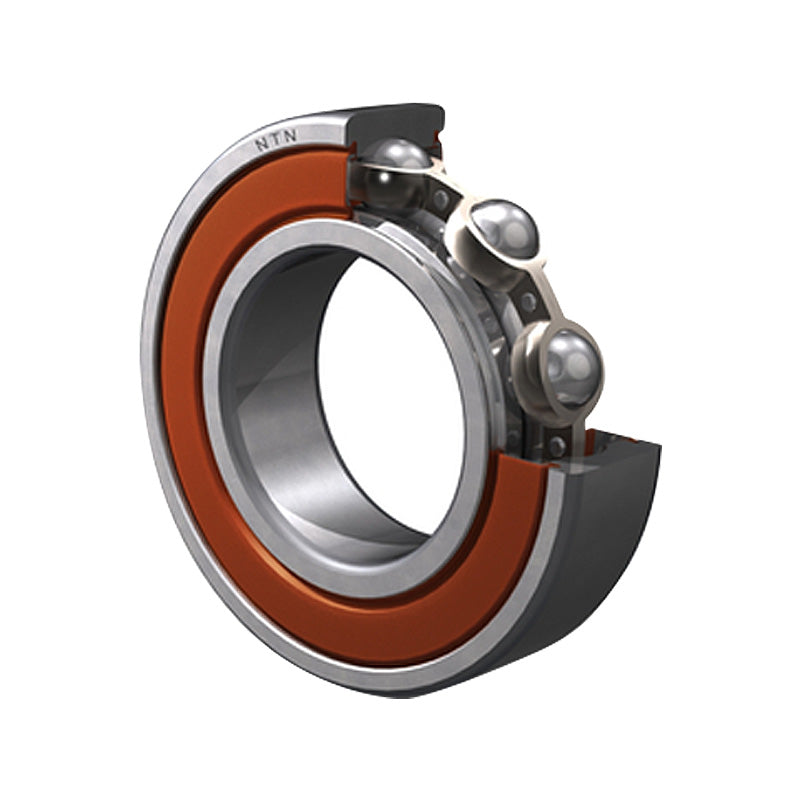

NTN 6815LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 75x95x10mm
Equivalent to: 6815LLUCM 61815LLUCM 6815LLU 61815LLU 6815NSE 6815DU 6815RS 6815RSH 6815P 6815RSR 6815LU 68152NSE 6815DDU 68152RS 6815-2RS 68152RS1 68152RSH 6815PP 68152RSR 6815LLU 6815RS2 68152RS2 68152RSL 6815LFS 6815EE 1815SZZ 6815DD
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 95mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 75mm |
| D | 95mm |
| B | 10mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 13.9 kN |
| C<sub>or</sub> | 12.9 kN |
| C<sub>u</sub> | 0.855 kN |
| f<sub>0</sub> | 16 kN |
| Speed | 3600 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 79mm |
| d<sub>a</sub> Max. | 80mm |
| D<sub>a</sub> Max. | 91mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight Kg | 0.145 kg |
