SKU: 6818LLB/2AS-NTN

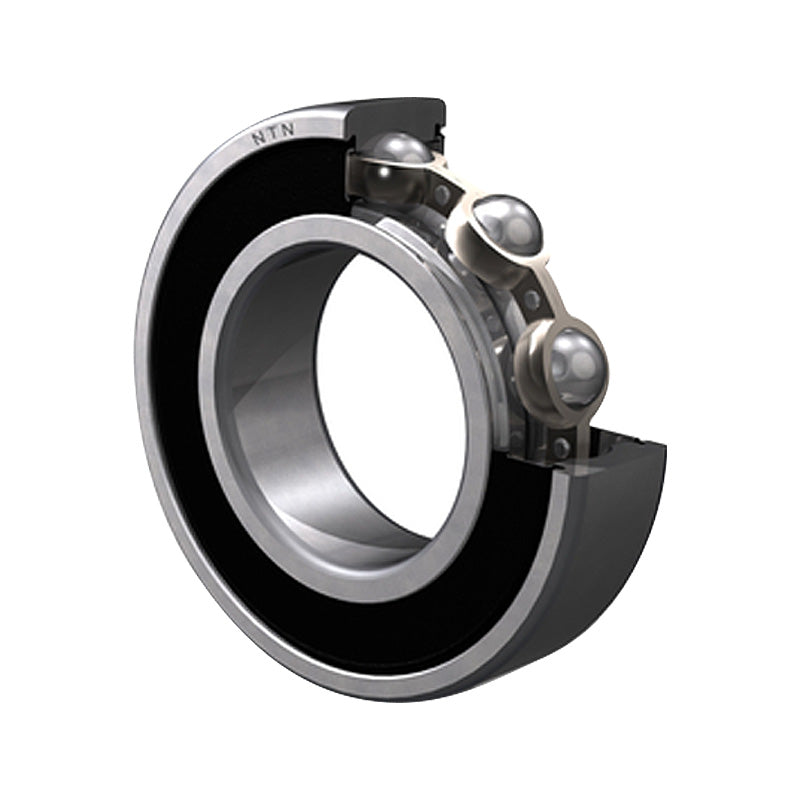

NTN 6818LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 90x115x13mm
NTN 6818LLB/2AS Non-Contact Deep Groove Ball Bearing with Low Friction Seals 90x115x13mm
Regular price
€281,51
ex VAT
Regular price
Sale price
€281,51
ex VAT
Equivalent to: 6818LLBCM 61818LLBCM 6818LLB 61818LLB 68182NKE 6818VV 68182RSL 68182RZ
In stock
Price Break
3+
€213,94
5+
€201,92
10+
€199,52
25+
€197,11
49+
€194,71
74+
€192,30
99+
€180,29
199+
€177,88
249+
€175,48
499+
€173,07
999+
€168,27
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 115mm
- Width:
- 13mm
- Seals / Shields:
- Low Friction
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 90mm |
| D | 115mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 21.1 kN |
| C<sub>or</sub> | 19.7 kN |
| C<sub>u</sub> | 1.3 kN |
| f<sub>0</sub> | 16.1 kN |
| Grease | 5400 rpm |
| Oil | 6300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 95mm |
| d<sub>a</sub> Max. | 96mm |
| D<sub>a</sub> Max. | 110mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.285 kg |
