SKU: 6820-ZZ/C3-NACHI

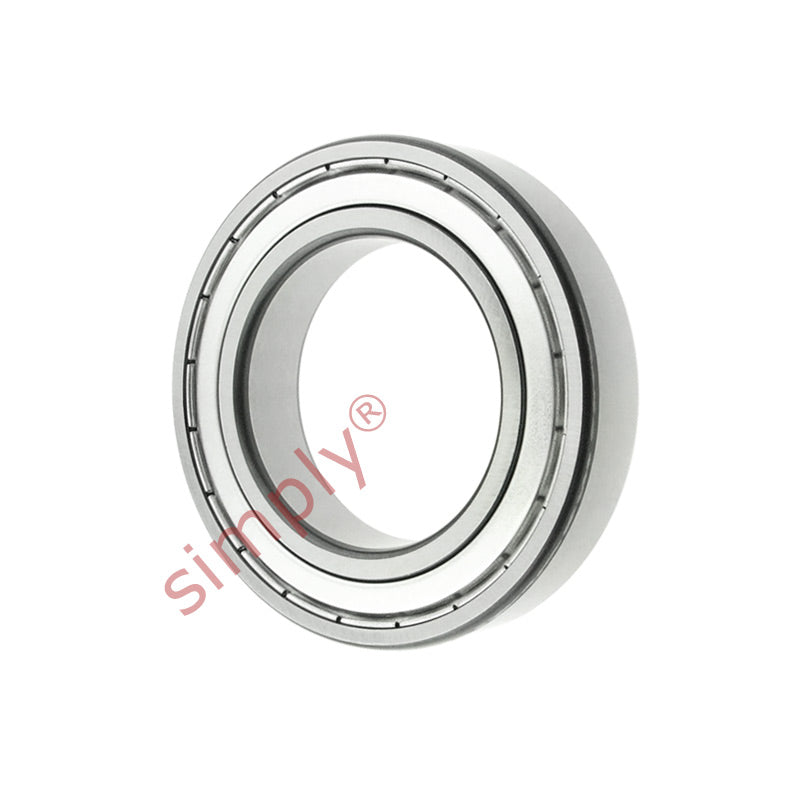

NACHI 6820ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 100x125x13mm
NACHI 6820ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 100x125x13mm
Equivalent to: 6820ZZEC3 68202ZC3 6820.2ZC3 6820KDDC3 6820DDC3 68202ZRC3 6820FFC3 61820ZZEC3 61820ZZC3 618202ZC3 61820.2ZC3 61820KDDC3 61820DDC3 618202ZRC3 61820FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 125mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 100mm |
|---|---|
| Outside Diameter D | 125mm |
| Width B | 13mm |
| Min radius r | 1mm |
| Dynamic load | 19600 kN |
| Static load | 21200 kN |
| Max speed | 4800 rpm |
| da min | 105mm |
| Da max | 120mm |
| ra max | 1mm |
| Weight | 0.311 kg |
