SKU: 6820C3-NTN

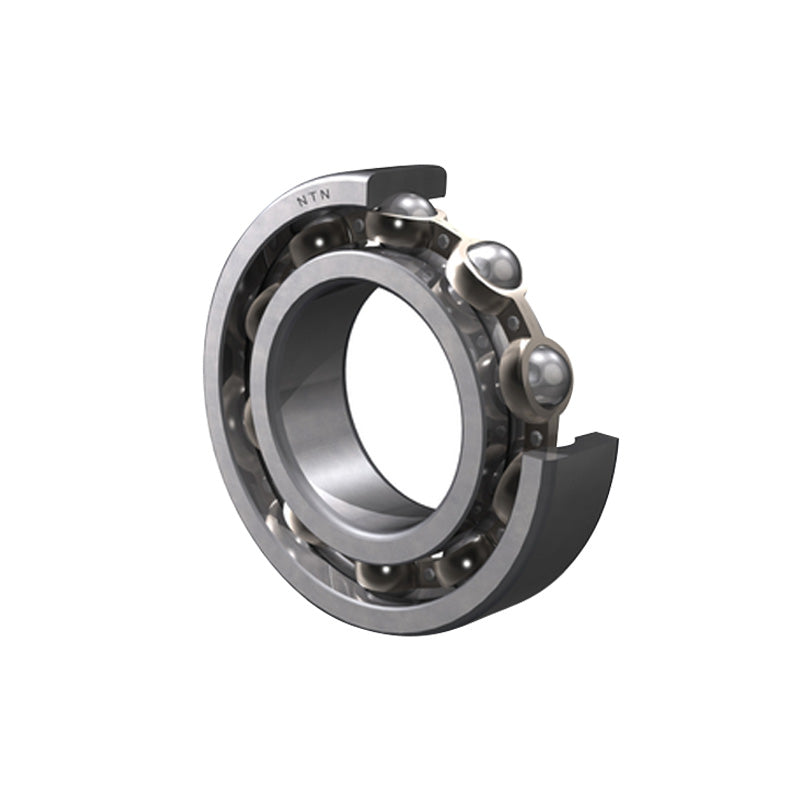

NTN 6820C3 Open Type Deep Groove Ball Bearing 100x125x13mm
NTN 6820C3 Open Type Deep Groove Ball Bearing 100x125x13mm
Regular price
€244,33
ex VAT
Regular price
Sale price
€244,33
ex VAT
Equivalent to: 61820C3 61820TC3 61820C3 1820SC3 61820YC3
In stock
Price Break
3+
€185,68
5+
€175,25
10+
€173,16
25+
€171,08
49+
€168,99
74+
€166,90
99+
€156,47
199+
€154,39
249+
€152,30
499+
€150,21
999+
€146,04
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 125mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 125mm |
| B | 13mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 21.7 kN |
| C<sub>or</sub> | 21.2 kN |
| C<sub>u</sub> | 1.33 kN |
| f<sub>0</sub> | 16 kN |
| Grease | 4800 rpm |
| Oil | 5600 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 105mm |
| D<sub>a</sub> Max. | 120mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.313 kg |
