SKU: 6821/C3-NACHI

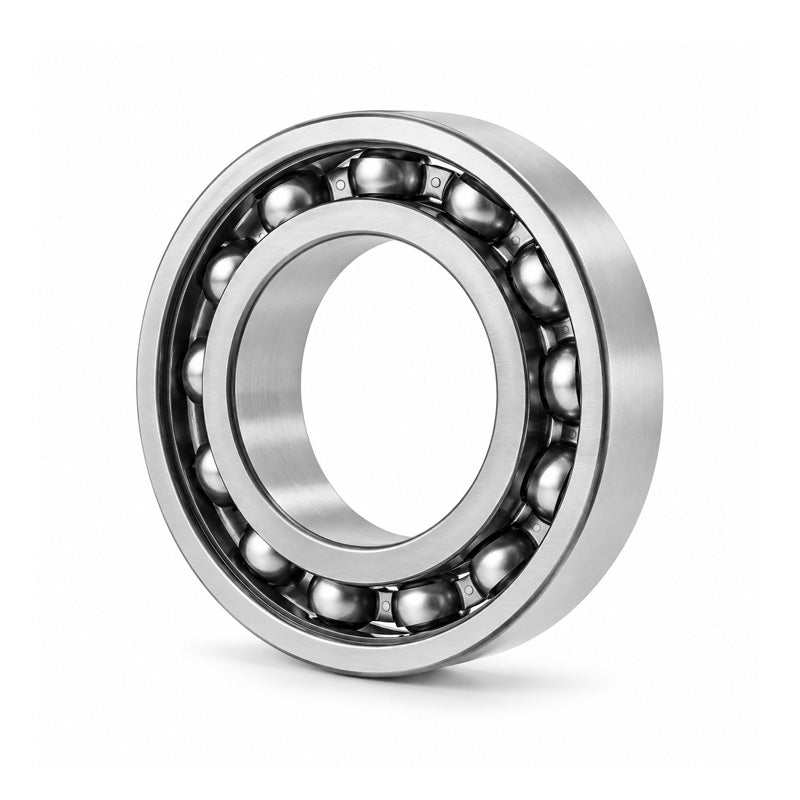

NACHI 6821C3 Thin Section Open Deep Groove Ball Bearing 105x130x13mm
NACHI 6821C3 Thin Section Open Deep Groove Ball Bearing 105x130x13mm
Equivalent to: 61821C3
Out of stock
Description
Description
|
NACHI Open Type Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This type of bearing consists of inner and outer rings, balls and a cage. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 105mm
- Outside Diameter:
- 130mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 105mm |
|---|---|
| Outside Diameter D | 130mm |
| Width B | 13mm |
| Min radius r | 1mm |
| Dynamic load | 19900 kN |
| Static load | 21900 kN |
| Max speed in oil | 5600 rpm |
| Max speed in grease | 4800 rpm |
| da min | 110mm |
| Da max | 125mm |
| ra max | 1mm |
| Weight | 0.325 kg |
