SKU: 6840-NTN

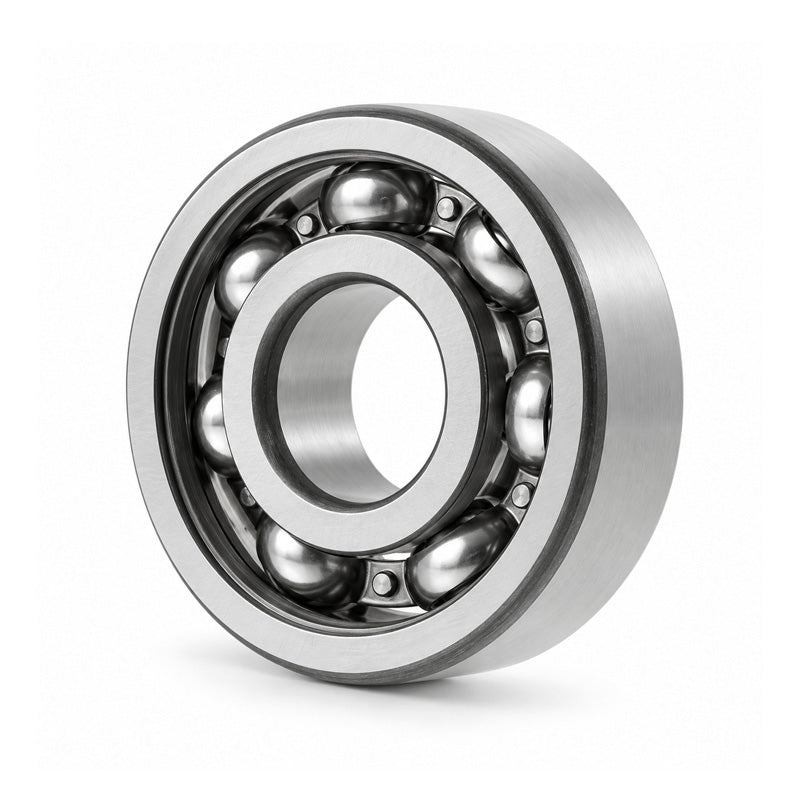

NTN 6840 Open Type Deep Groove Ball Bearing 200x250x24mm
NTN 6840 Open Type Deep Groove Ball Bearing 200x250x24mm
Regular price
€1.000,90
ex VAT
Regular price
Sale price
€1.000,90
ex VAT
Equivalent to: 6840CM 61840CM 61840T 61840 1840S 61840Y
In stock
Price Break
3+
€760,64
5+
€717,91
10+
€709,36
25+
€700,81
49+
€692,27
74+
€683,72
99+
€640,99
199+
€632,44
249+
€623,89
499+
€615,35
999+
€598,26
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 200mm
- Outside Diameter:
- 250mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 200mm |
| D | 250mm |
| B | 24mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 82 kN |
| C<sub>or</sub> | 91.5 kN |
| C<sub>u</sub> | 4.05 kN |
| f<sub>0</sub> | 16.1 kN |
| Grease | 2300 rpm |
| Oil | 2700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 208mm |
| D<sub>a</sub> Max. | 242mm |
| r<sub>as</sub> Max. | 1.5mm |
| Weight | 2.73 kg |
