SKU: 6856-NTN

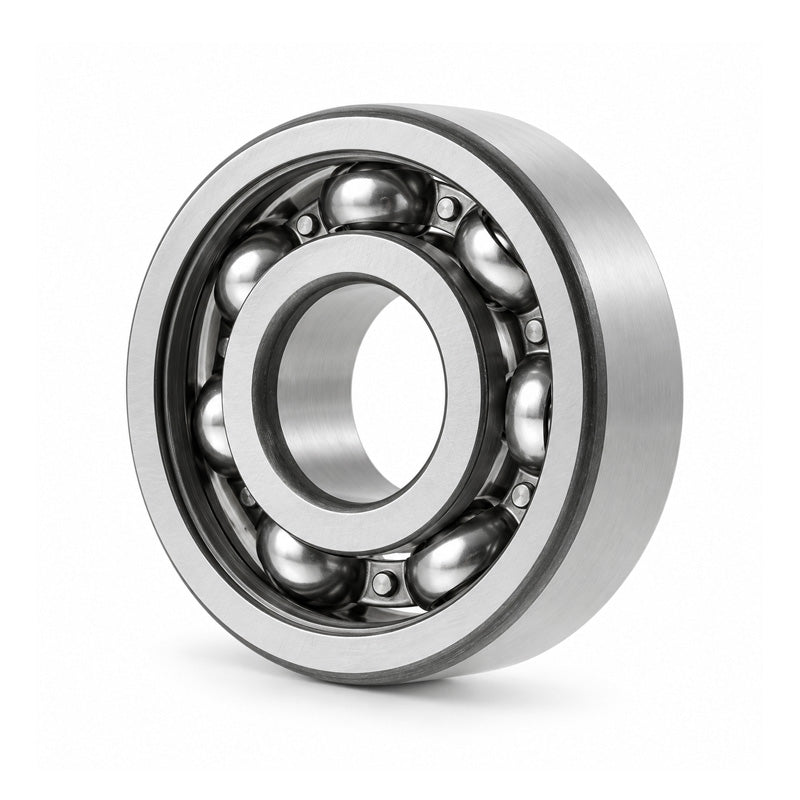

NTN 6856 Open Type Deep Groove Ball Bearing 280x350x33mm
NTN 6856 Open Type Deep Groove Ball Bearing 280x350x33mm
Regular price
€1.797,61
ex VAT
Regular price
Sale price
€1.797,61
ex VAT
Equivalent to: 6856CM 61856CM 61856T 61856 1856S 61856Y
In stock
Price Break
3+
€1.366,10
5+
€1.289,35
10+
€1.274,00
25+
€1.258,65
49+
€1.243,30
74+
€1.227,95
99+
€1.151,21
199+
€1.135,86
249+
€1.120,51
499+
€1.105,16
999+
€1.074,46
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 280mm
- Outside Diameter:
- 350mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 280mm |
| D | 350mm |
| B | 33mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 151 kN |
| C<sub>or</sub> | 177 kN |
| C<sub>u</sub> | 6.65 kN |
| f<sub>0</sub> | 16.1 kN |
| Grease | 1600 rpm |
| Oil | 1900 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 289mm |
| D<sub>a</sub> Max. | 341mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 7.4 kg |
