SKU: 6876MA-SKF

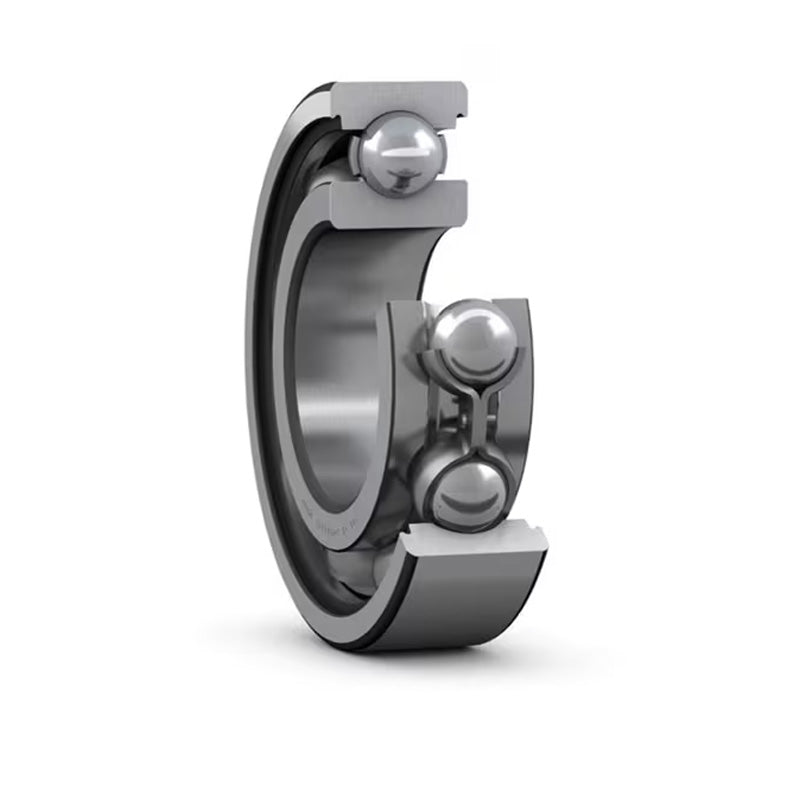

SKF 6876MA Open Type Thin Section Deep Groove Ball Bearing 380x480x46mm
SKF 6876MA Open Type Thin Section Deep Groove Ball Bearing 380x480x46mm
Out of stock
Share this product
Description
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 380mm
- Outside Diameter:
- 480mm
- Width:
- 46mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 380mm |
|---|---|
| D | 480mm |
| B | 46mm |
| Dynamic load | 242 kN |
| Static load | 390 kN |
| Fatigue load limit Pu | 8 kN |
| Reference speed | 2 400 rpm |
| Limiting speed | 2 000 rpm |
| Weight | 20 kg |
| d1 | 412mm |
| D1 | 449mm |
| D2 | 2.1mm |
| r1r2 min | 392mm |
| da min | 468mm |
| Da max | 2mm |
| ra max | 0.015mm |
| Calculation factor kr | 17 |
| Calculation factor Cor | N/A |
