• NACHI 6900ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 10x22x6mm
1 1

SKU: 6900-ZZE/C3-NACHI

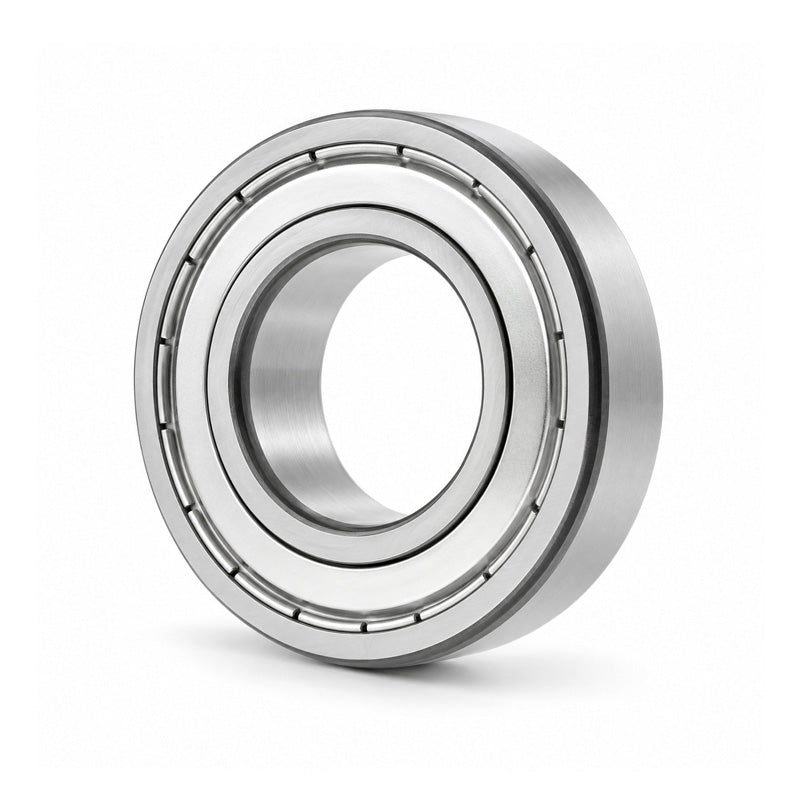

NACHI 6900ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 10x22x6mm

NACHI 6900ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 10x22x6mm

Equivalent to: 6900ZZC3 69002ZC3 6900.2ZC3 6900KDDC3 6900DDC3 69002ZRC3 6900FFC3 61900ZZEC3 61900ZZC3 619002ZC3 61900.2ZC3 61900KDDC3 61900DDC3 619002ZRC3 61900FFC3

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance.
Benefits: High-running accuracy and high-speed operation.
Brand / Quality:
Nachi - High Quality
Inside Diameter:
10mm
Outside Diameter:
22mm
Width:
6mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Technical
Inside Diameter d 10mm
Outside Diameter D 22mm
Width B 6mm
Min radius r 0.3mm
Dynamic load 2490 kN
Static load 1130 kN
Max speed 33000 rpm
da min 12mm
Da max 20mm
ra max 0.3mm
Weight 0.009 kg
