SKU: 6902-NTN

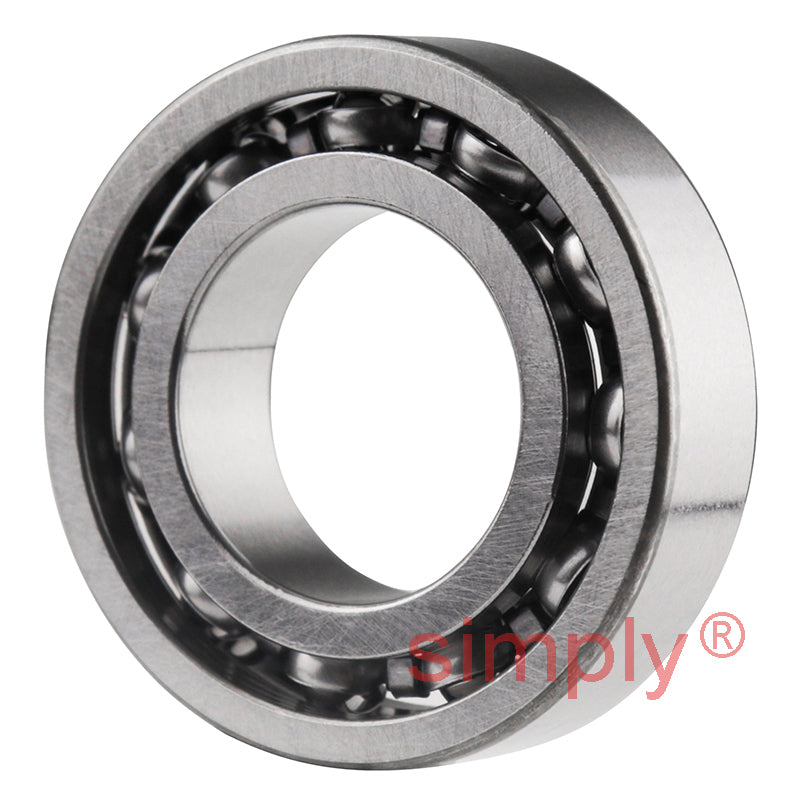

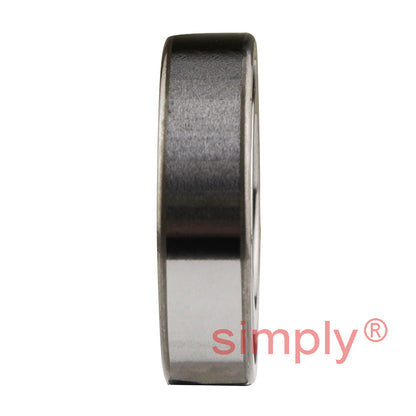

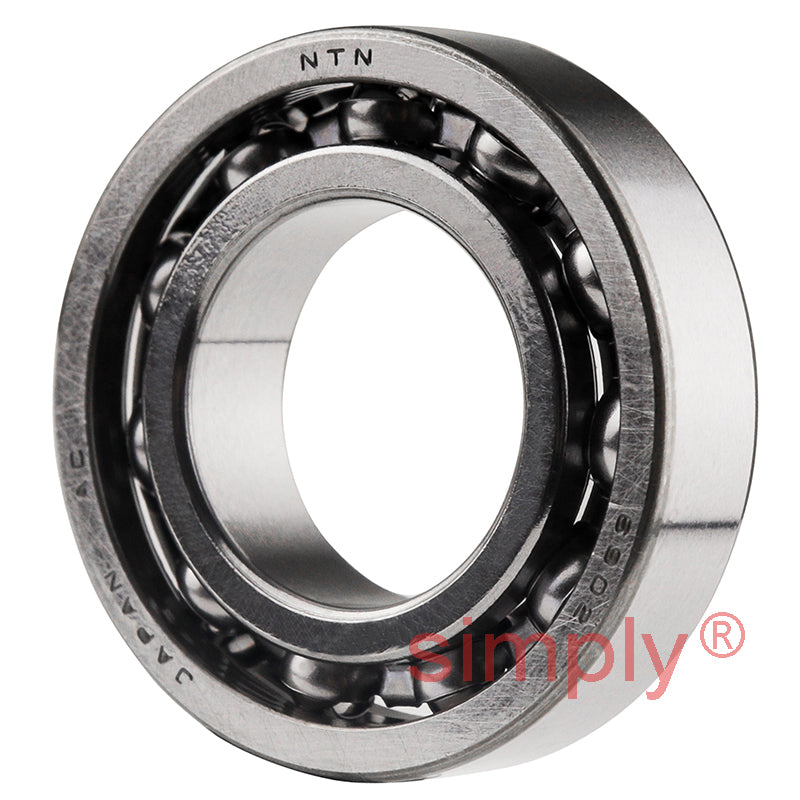

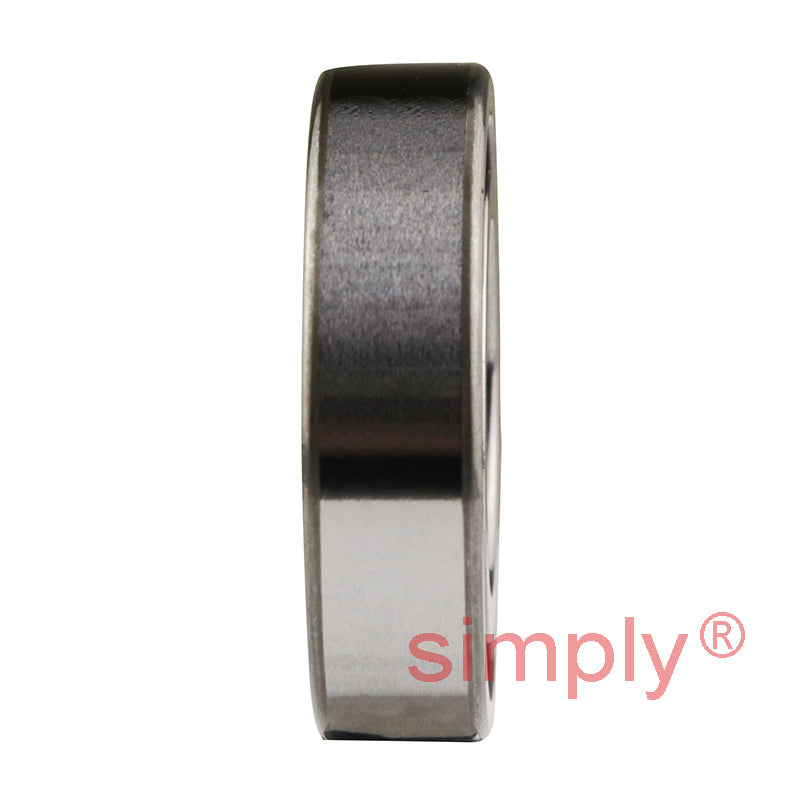

NTN 6902 Open Type Deep Groove Ball Bearing 15x28x7mm
NTN 6902 Open Type Deep Groove Ball Bearing 15x28x7mm
Regular price
€14,37
ex VAT
Regular price
Sale price
€14,37
ex VAT
Equivalent to: 6902CM 61902CM 9302K 61902 61902S AY15
In stock
Price Break
3+
€10,92
5+
€10,31
10+
€10,18
25+
€10,06
49+
€9,94
74+
€9,82
99+
€9,20
199+
€9,08
249+
€8,96
499+
€8,83
999+
€8,59
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 7mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 15mm |
| D | 28mm |
| B | 7mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 4.05 kN |
| C<sub>or</sub> | 2 kN |
| C<sub>u</sub> | 0.157 kN |
| f<sub>0</sub> | 14.8 kN |
| Grease | 24000 rpm |
| Oil | 28000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 17mm |
| D<sub>a</sub> Max. | 26mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.016 kg |
