SKU: 6903JRXLLU/5K-NTN

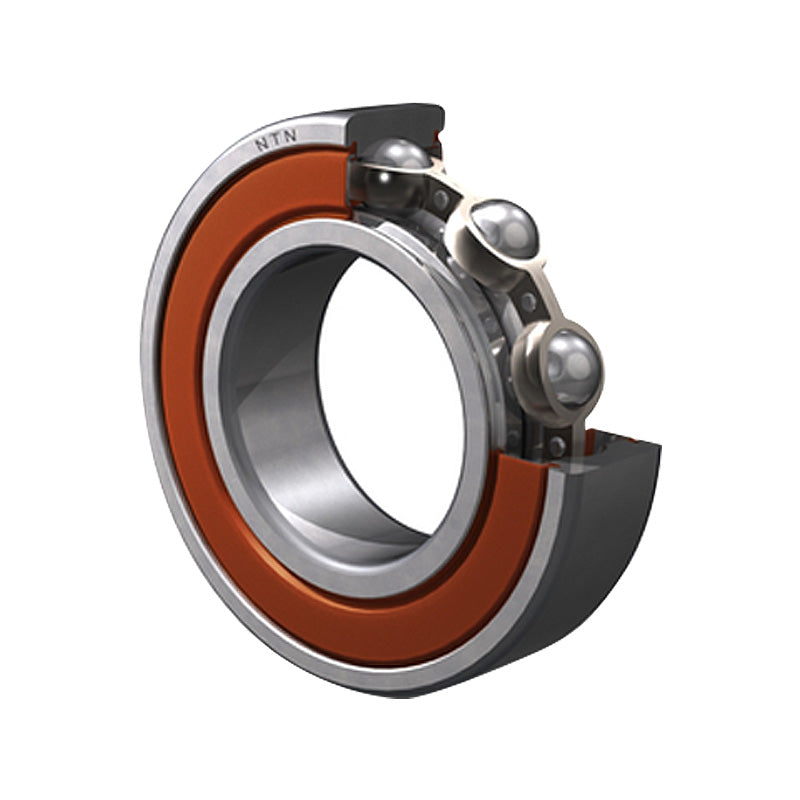

NTN 6903JRXLLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 17x30x7mm
Equivalent to: 6903JRXLLUCM 61903JRXLLUCM 6903JRXLLU 61903JRXLLU 6903NSE 6903DU 6903RS 6903RSH 6903P 6903RSR 6903LU 69032NSE 6903DDU 69032RS 6903-2RS 69032RS1 69032RSH 6903PP 69032RSR 6903LLU 6903RS2 69032RS2 69032RSL 6903LFS 6903EE 1903SZZ 6903DD AY172RS 9303NPP
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 17mm |
| D | 30mm |
| B | 7mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 5.15 kN |
| C<sub>or</sub> | 2.58 kN |
| C<sub>u</sub> | 0.202 kN |
| f<sub>0</sub> | 14.7 kN |
| Speed | 14000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 19mm |
| d<sub>a</sub> Max. | 20mm |
| D<sub>a</sub> Max. | 28mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight Kg | 0.018 kg |
