SKU: 6907LLU/5K-NTN

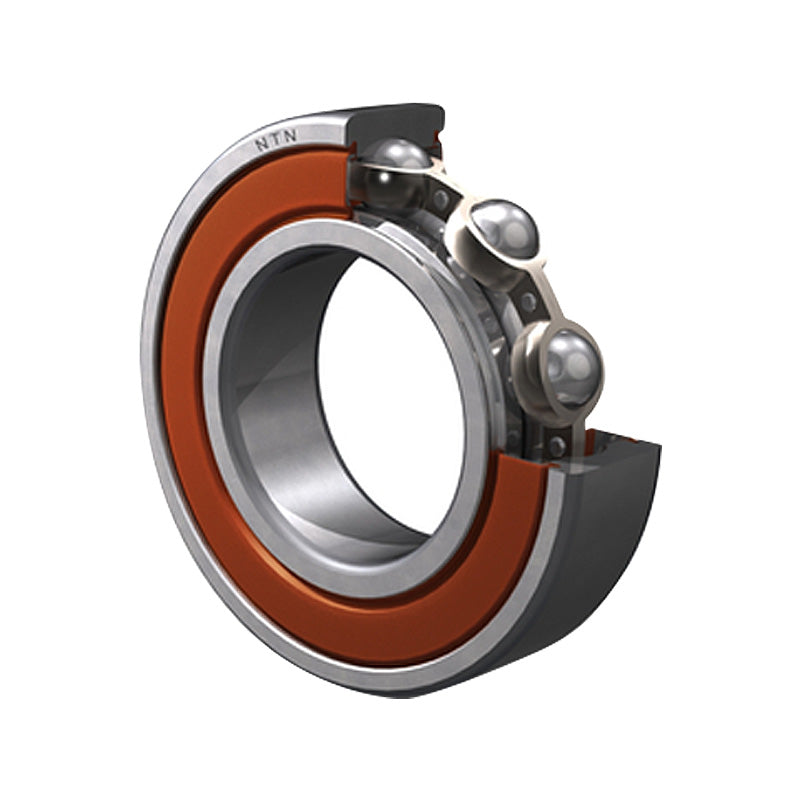

NTN 6907LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 35x55x10mm
Equivalent to: 6907LLUCM 61907LLUCM 6907LLU 61907LLU 6907NSE 6907DU 6907RS 6907RSH 6907P 6907RSR 6907LU 69072NSE 6907DDU 69072RS 6907-2RS 69072RS1 69072RSH 6907PP 69072RSR 6907LLU 6907RS2 69072RS2 69072RSL 6907LFS 6907EE 1907SZZ 6907DD AY352RS 9307NPP
In stock
Price Break
Couldn't load pickup availability
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 55mm |
| B | 10mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 10.6 kN |
| C<sub>or</sub> | 6.85 kN |
| C<sub>u</sub> | 0.495 kN |
| f<sub>0</sub> | 15.8 kN |
| Speed | 7100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 39mm |
| d<sub>a</sub> Max. | 40mm |
| D<sub>a</sub> Max. | 51mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight Kg | 0.074 kg |
