SKU: 6907VVC3-NSK

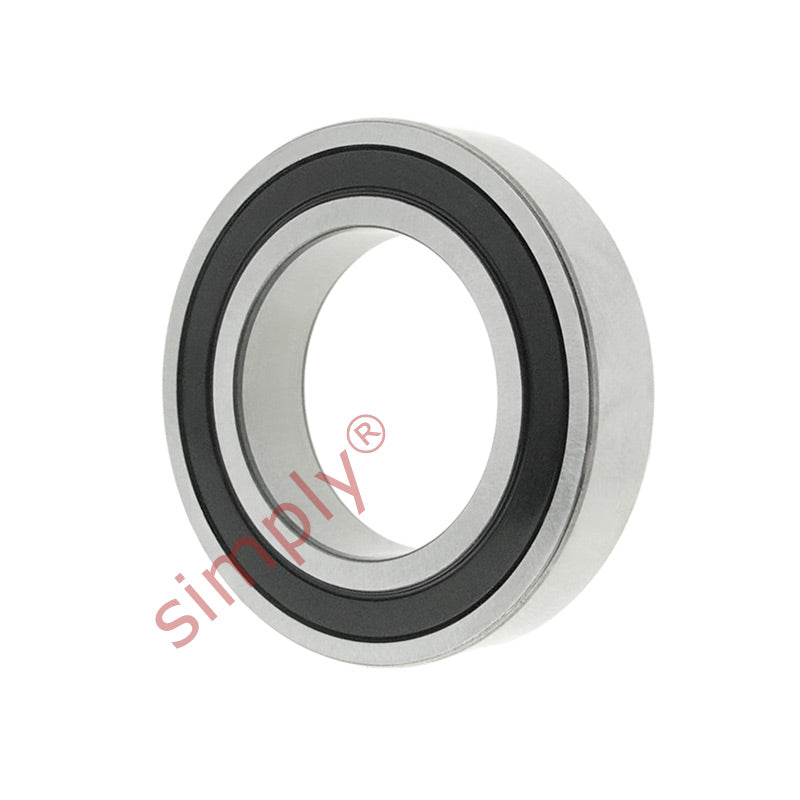

NSK 6907VVC3 Thin Section Non Contact Rubber Sealed Deep Groove Ball Bearing 35x55x10mm
NSK 6907VVC3 Thin Section Non Contact Rubber Sealed Deep Groove Ball Bearing 35x55x10mm
Equivalent to: 61907VVC3
Out of stock
Share this product
Description
Description
Non Contact Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. Seals can be easily removed for applications that only require 1 seal. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 10mm
- Seals / Shields:
- Low Friction
- Clearance:
- C3
Technical
Technical
| d | 35mm |
|---|---|
| D | 55mm |
| B | 10mm |
| r min | 0.6mm |
| Dynamic load Cr | 10600 N (1080 kgf) |
| Static load Cor | 7250 N (740 kgf) |
| Factor | 15.5 |
| Speed in grease | 12000 rpm |
| Speed in oil | 15000 rpm |
| Weight | 0.075 kg |
