SKU: 6908C3-NTN

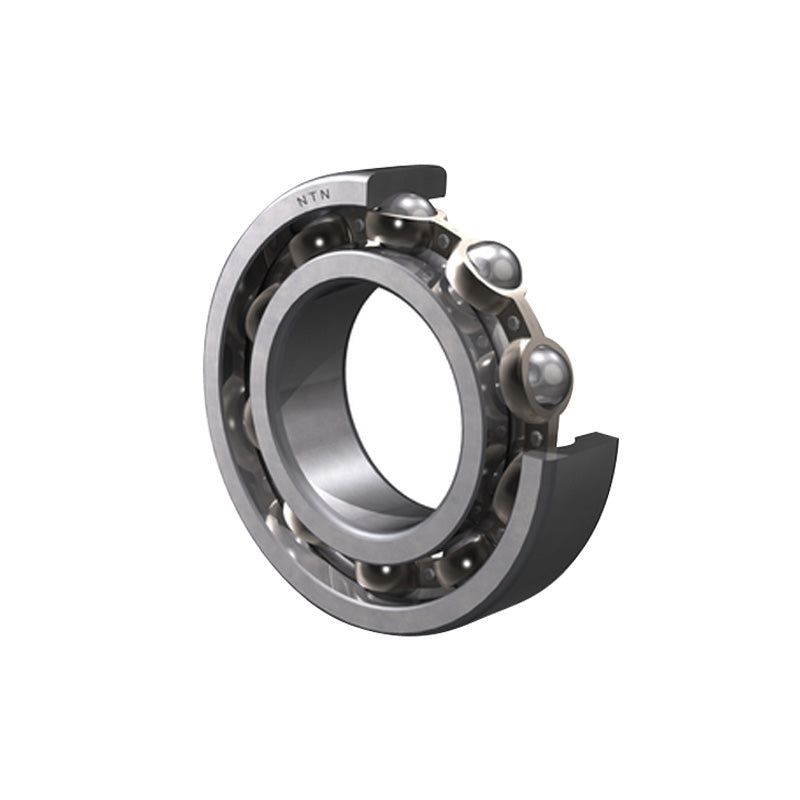

NTN 6908C3 Open Type Deep Groove Ball Bearing 40x62x12mm
NTN 6908C3 Open Type Deep Groove Ball Bearing 40x62x12mm
Regular price
€72,89
ex VAT
Regular price
Sale price
€72,89
ex VAT
Equivalent to: 61908C3 9308KC3 61908C3 61908SC3 AY40C3
In stock
Price Break
3+
€55,39
5+
€52,28
10+
€51,66
25+
€51,04
49+
€50,41
74+
€49,79
99+
€46,68
199+
€46,06
249+
€45,44
499+
€44,81
999+
€43,57
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 62mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 13.5 kN |
| C<sub>or</sub> | 8.9 kN |
| C<sub>u</sub> | 0.645 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 11000 rpm |
| Oil | 13000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 44mm |
| D<sub>a</sub> Max. | 58mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.11 kg |
