SKU: 6909-ZZE/C3-NACHI

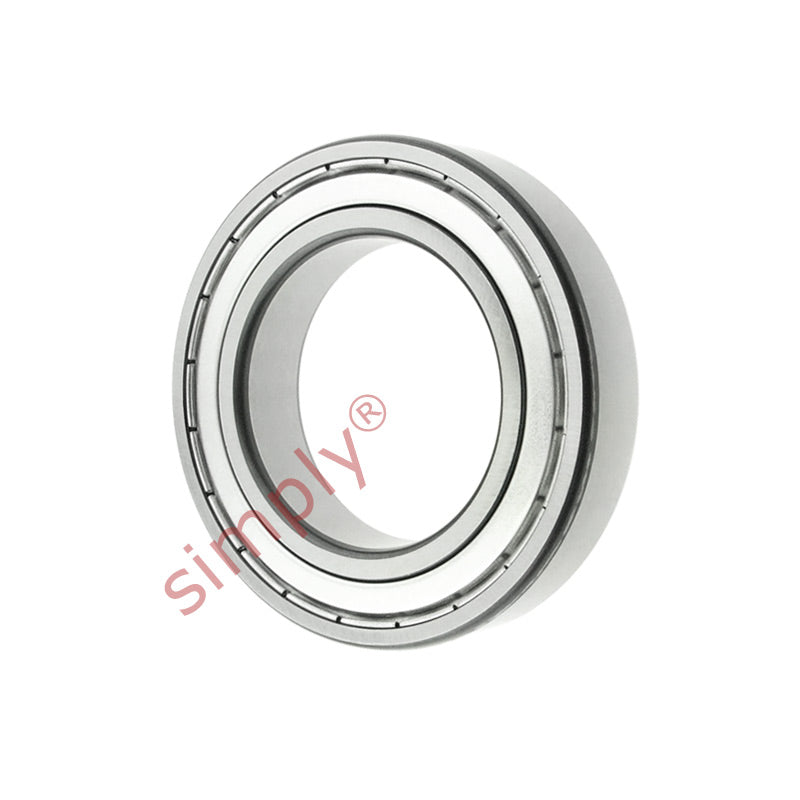

NACHI 6909ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 45x68x12mm
NACHI 6909ZZEC3 Thin Section Metal Shielded Deep Groove Ball Bearing 45x68x12mm
Equivalent to: 6909ZZC3 69092ZC3 6909.2ZC3 6909KDDC3 6909DDC3 69092ZRC3 6909FFC3 61909ZZEC3 61909ZZC3 619092ZC3 61909.2ZC3 61909KDDC3 61909DDC3 619092ZRC3 61909FFC3
Out of stock
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 68mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 68mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 14100 kN |
| Static load | 10900 kN |
| Max speed | 10000 rpm |
| da min | 49mm |
| Da max | 64mm |
| ra max | 0.6mm |
| Weight | 0.122 kg |
