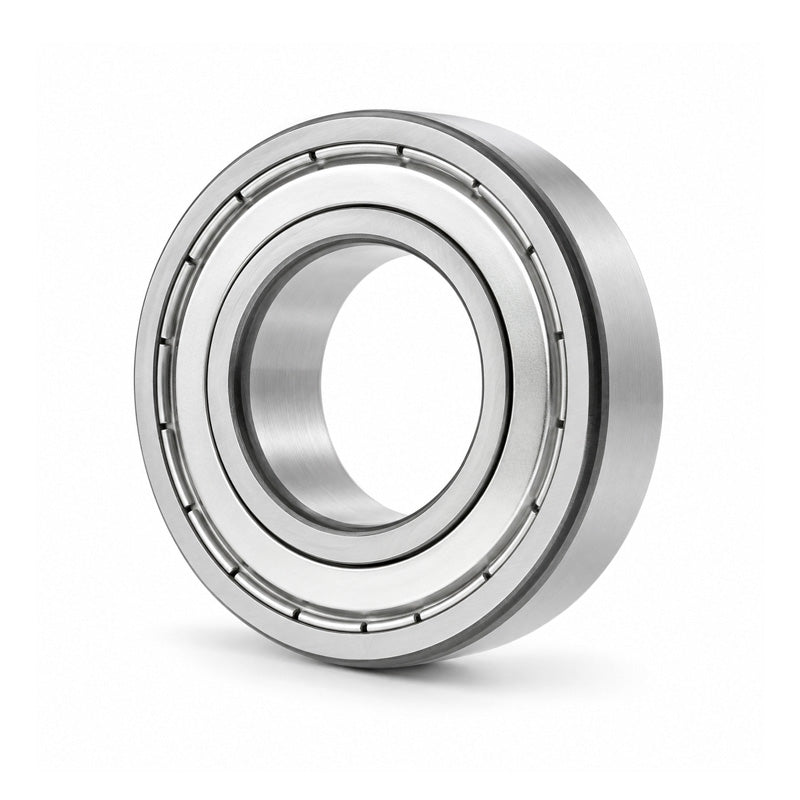

NACHI 6911ZZ Thin Section Metal Shielded Deep Groove Ball Bearing 55x80x13mm
NACHI 6911ZZ Thin Section Metal Shielded Deep Groove Ball Bearing 55x80x13mm
Equivalent to: 6911ZZE 69112Z 6911.2Z 6911KDD 6911DD 69112ZR 6911FF 61911ZZE 61911ZZ 619112Z 61911.2Z 61911KDD 61911DD 619112ZR 61911FF
Out of stock
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 80mm
- Width:
- 13mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 55mm |
|---|---|
| Outside Diameter D | 80mm |
| Width B | 13mm |
| Min radius r | 1mm |
| Dynamic load | 16000 kN |
| Static load | 13200 kN |
| Max speed | 8200 rpm |
| da min | 60mm |
| Da max | 75mm |
| ra max | 1mm |
| Weight | 0.177 kg |
