SKU: 6960-NTN

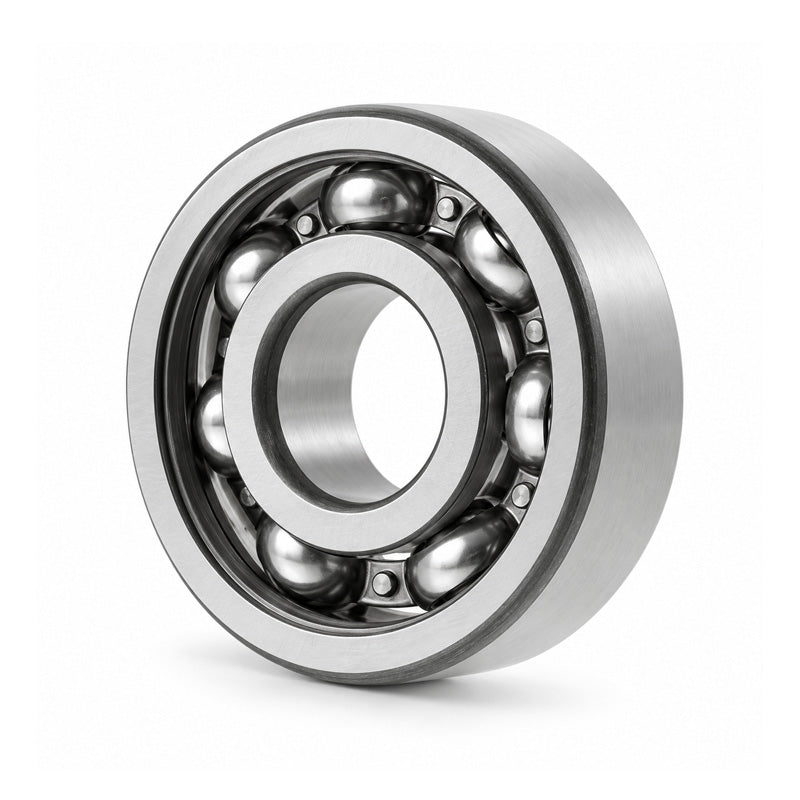

NTN 6960 Open Type Deep Groove Ball Bearing 300x420x56mm
NTN 6960 Open Type Deep Groove Ball Bearing 300x420x56mm
Regular price
€3.815,24
ex VAT
Regular price
Sale price
€3.815,24
ex VAT
Equivalent to: 6960CM 61960CM 9360K 61960 61960S AY300
In stock
Price Break
3+
€2.899,41
5+
€2.736,52
10+
€2.703,94
25+
€2.671,36
49+
€2.638,79
74+
€2.606,21
99+
€2.443,32
199+
€2.410,74
249+
€2.378,16
499+
€2.345,59
999+
€2.280,43
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 300mm
- Outside Diameter:
- 420mm
- Width:
- 56mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 300mm |
| D | 420mm |
| B | 56mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 305 kN |
| C<sub>or</sub> | 375 kN |
| C<sub>u</sub> | 13.7 kN |
| f<sub>0</sub> | 16.2 kN |
| Grease | 1400 rpm |
| Oil | 1600 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 313mm |
| D<sub>a</sub> Max. | 407mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight | 23.5 kg |
