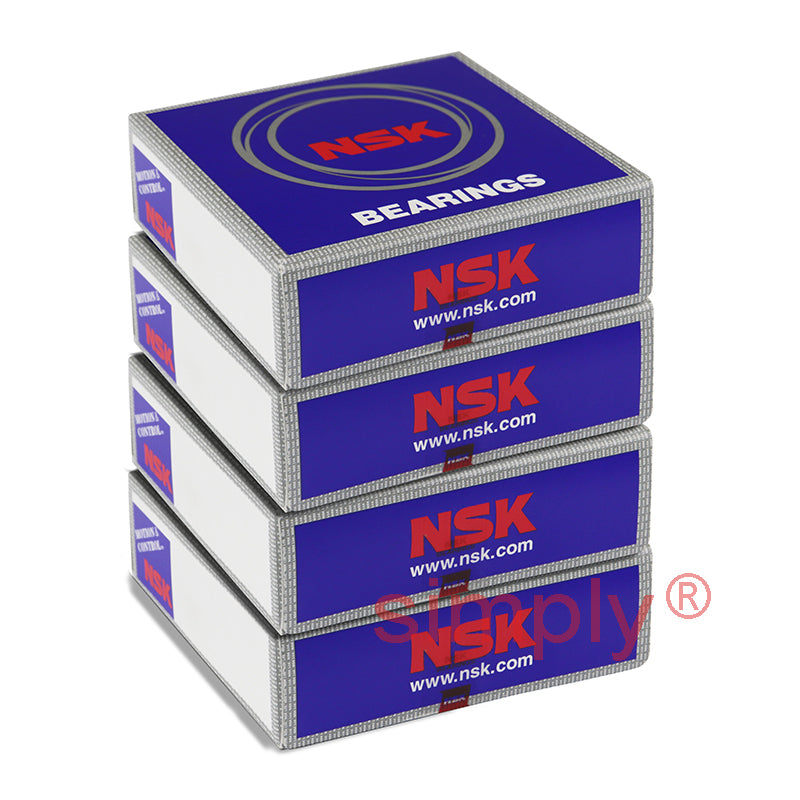

• NSK 7003CTRQULP3 Super Precision Angular Contact Spindle Bearing 17x35x10mm (Set of 4)
1 1

SKU: 7003CTRQULP3-NSK

NSK 7003CTRQULP3 Super Precision Angular Contact Spindle Bearing 17x35x10mm (Set of 4)

NSK 7003CTRQULP3 Super Precision Angular Contact Spindle Bearing 17x35x10mm (Set of 4)
€439,00 ex VAT
€439,00 ex VAT
Sale Sold out

In stock

Price Break
3+ €327,08
5+ €308,70
10+ €305,03
25+ €301,35
49+ €297,68
74+ €294,00
99+ €275,63
199+ €271,95
249+ €268,28
499+ €264,60
999+ €257,25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
17mm
Outside Diameter:
35mm
Width:
10mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 17mm
D 35mm
B 10mm
r<sub>min</sub> 0.3mm
r1<sub>min</sub> 0.15mm
--- Loads angles and speeds
C<sub>r</sub> 6.95Kn
C<sub>or</sub> 3.8kN
Axial load Kn 2.85 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 14.5
Effective diameter 8.5mm
Max speed in grease 44300 rpm
Max speed in oil 67400 rpm
--- Fitting dimensions
d<sub>a min</sub> 19.5mm
D<sub>a max</sub> 32.5mm
D<sub>b max</sub> 33.8mm
r<sub>a max</sub> 0.3mm
r<sub>b max</sub> 0.15mm
Weight 0.156kg
