SKU: 7007A5TRDBDLP3-RHP

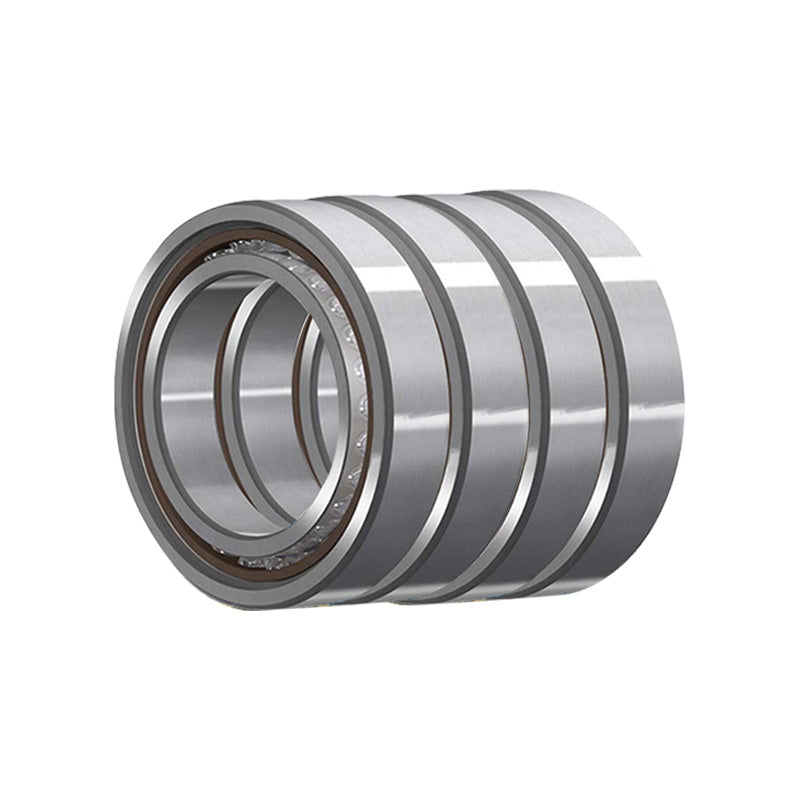

RHP 7007A5TRDBDLP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm (Set of 4)

RHP 7007A5TRDBDLP3 Super Precision Angular Contact Spindle Bearing 35x62x14mm (Set of 4)
Regular price €400,36 ex VAT
Regular price Sale price €400,36 ex VAT
Sale Sold out

In stock

Price Break
3+ €304,26
5+ €287,17
10+ €283,75
25+ €280,33
49+ €276,91
74+ €273,49
99+ €256,40
199+ €252,98
249+ €249,56
499+ €246,14
999+ €239,30
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 35mm
D 62mm
B 14mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 19.1Kn
C<sub>or</sub> 13kN
Axial load Kn 11.4 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 18.3mm
Max speed in grease 20700 rpm
Max speed in oil 31000 rpm
--- Fitting dimensions
d<sub>a min</sub> 41mm
D<sub>a max</sub> 56mm
D<sub>b max</sub> 57mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.604kg
