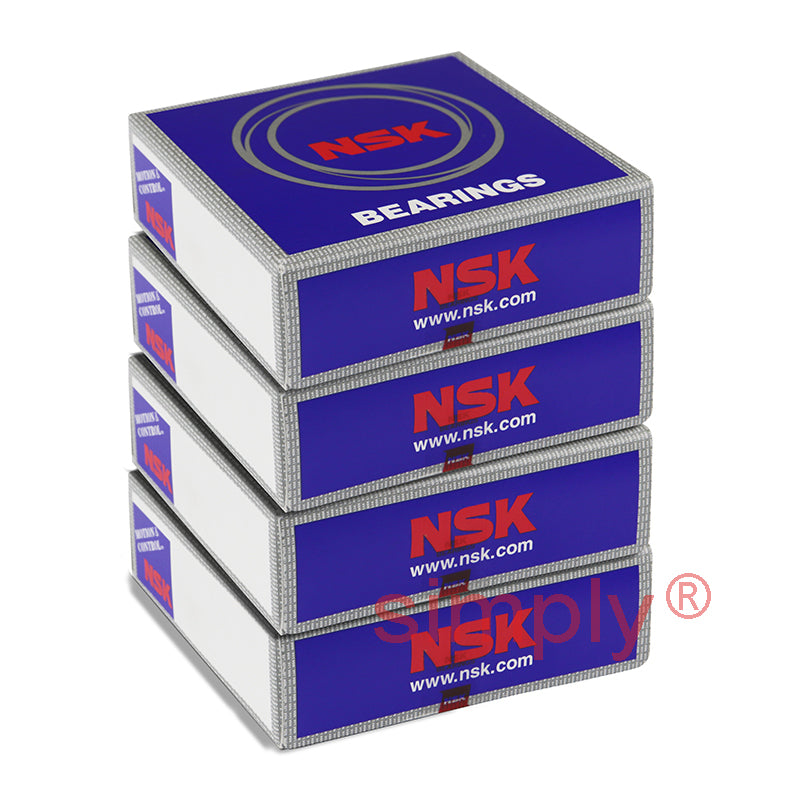

• NSK 7009A5TRQULP3 Super Precision Angular Contact Spindle Bearing 45x75x16mm (Set of 4)
1 1

SKU: 7009A5TRQULP3-NSK

NSK 7009A5TRQULP3 Super Precision Angular Contact Spindle Bearing 45x75x16mm (Set of 4)

NSK 7009A5TRQULP3 Super Precision Angular Contact Spindle Bearing 45x75x16mm (Set of 4)
€728,73 ex VAT
€728,73 ex VAT
Sale Sold out

In stock

Price Break
3+ €542,94
5+ €512,44
10+ €506,34
25+ €500,24
49+ €494,14
74+ €488,04
99+ €457,54
199+ €451,44
249+ €445,34
499+ €439,24
999+ €427,04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
45mm
Outside Diameter:
75mm
Width:
16mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 45mm
D 75mm
B 16mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 24.3Kn
C<sub>or</sub> 18.3kN
Axial load Kn 14.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 22mm
Max speed in grease 16700 rpm
Max speed in oil 25000 rpm
--- Fitting dimensions
d<sub>a min</sub> 51mm
D<sub>a max</sub> 69mm
D<sub>b max</sub> 70mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 1kg
