SKU: 7012A5TRQULP4-RHP

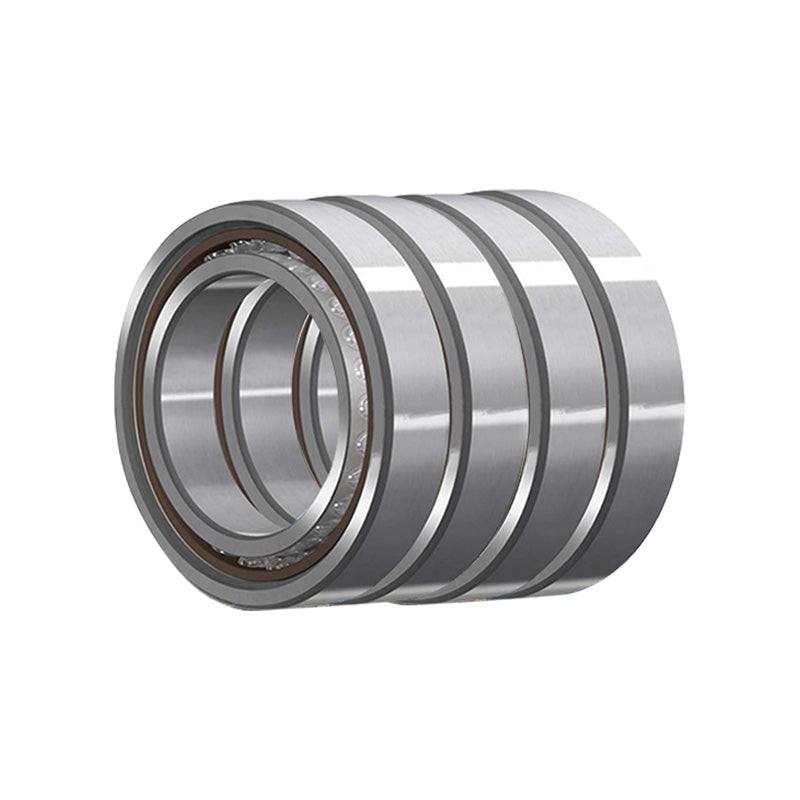

RHP 7012A5TRQULP4 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 4)

RHP 7012A5TRQULP4 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 4)
Regular price €971,06 ex VAT
Regular price Sale price €971,06 ex VAT
Sale Sold out

In stock

Price Break
3+ €737,96
5+ €696,50
10+ €688,21
25+ €679,92
49+ €671,63
74+ €663,33
99+ €621,88
199+ €613,58
249+ €605,29
499+ €597,00
999+ €580,42
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 35Kn
C<sub>or</sub> 29.1kN
Axial load Kn 23 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 27.1mm
Max speed in grease 13000 rpm
Max speed in oil 19400 rpm
--- Fitting dimensions
d<sub>a min</sub> 67mm
D<sub>a max</sub> 88mm
D<sub>b max</sub> 90mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 1.632kg
