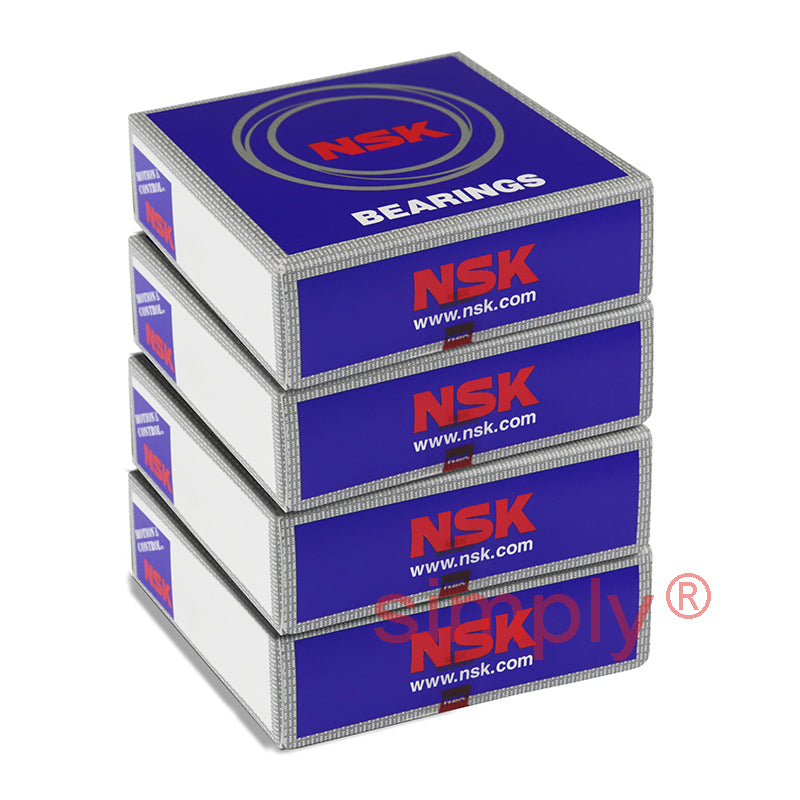

• NSK 7013A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 65x100x18mm (Set of 4)
1 1

SKU: 7013A5TRQUMP3-NSK

NSK 7013A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 65x100x18mm (Set of 4)

NSK 7013A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 65x100x18mm (Set of 4)
€1.090,47 ex VAT
€1.090,47 ex VAT
Sale Sold out

In stock

Price Break
3+ €812,45
5+ €766,81
10+ €757,68
25+ €748,55
49+ €739,42
74+ €730,30
99+ €684,65
199+ €675,52
249+ €666,40
499+ €657,27
999+ €639,01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
65mm
Outside Diameter:
100mm
Width:
18mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 65mm
D 100mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 37Kn
C<sub>or</sub> 32.5kN
Axial load Kn 25.4 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 28.2mm
Max speed in grease 12200 rpm
Max speed in oil 18200 rpm
--- Fitting dimensions
d<sub>a min</sub> 72mm
D<sub>a max</sub> 93mm
D<sub>b max</sub> 95mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 1.82kg
