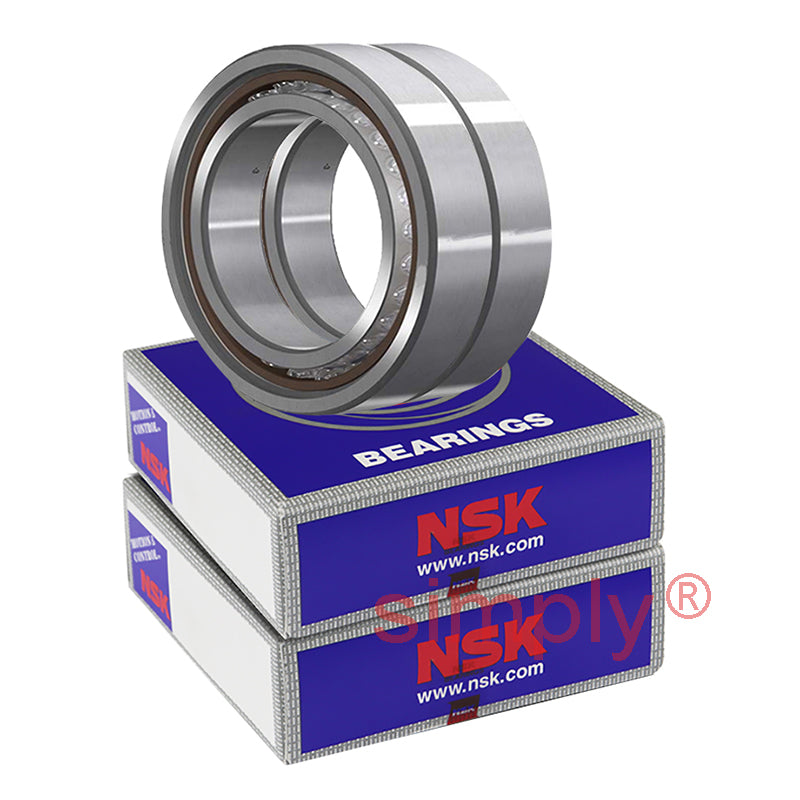

• NSK 7015CTRDUMP3 Super Precision Angular Contact Spindle Bearing 75x115x20mm (Set of 2)
1 1

SKU: 7015CTRDUMP3-NSK

NSK 7015CTRDUMP3 Super Precision Angular Contact Spindle Bearing 75x115x20mm (Set of 2)

NSK 7015CTRDUMP3 Super Precision Angular Contact Spindle Bearing 75x115x20mm (Set of 2)
€679,57 ex VAT
€679,57 ex VAT
Sale Sold out

In stock

Price Break
3+ €516,44
5+ €487,43
10+ €481,62
25+ €475,82
49+ €470,02
74+ €464,21
99+ €435,20
199+ €429,40
249+ €423,60
499+ €417,79
999+ €406,19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
75mm
Outside Diameter:
115mm
Width:
20mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
15 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 75mm
D 115mm
B 20mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 50.5Kn
C<sub>or</sub> 45.5kN
Axial load Kn 28.1 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.9
Effective diameter 22.7mm
Max speed in grease 12200 rpm
Max speed in oil 18500 rpm
--- Fitting dimensions
d<sub>a min</sub> 82mm
D<sub>a max</sub> 108mm
D<sub>b max</sub> 110mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 1.286kg
