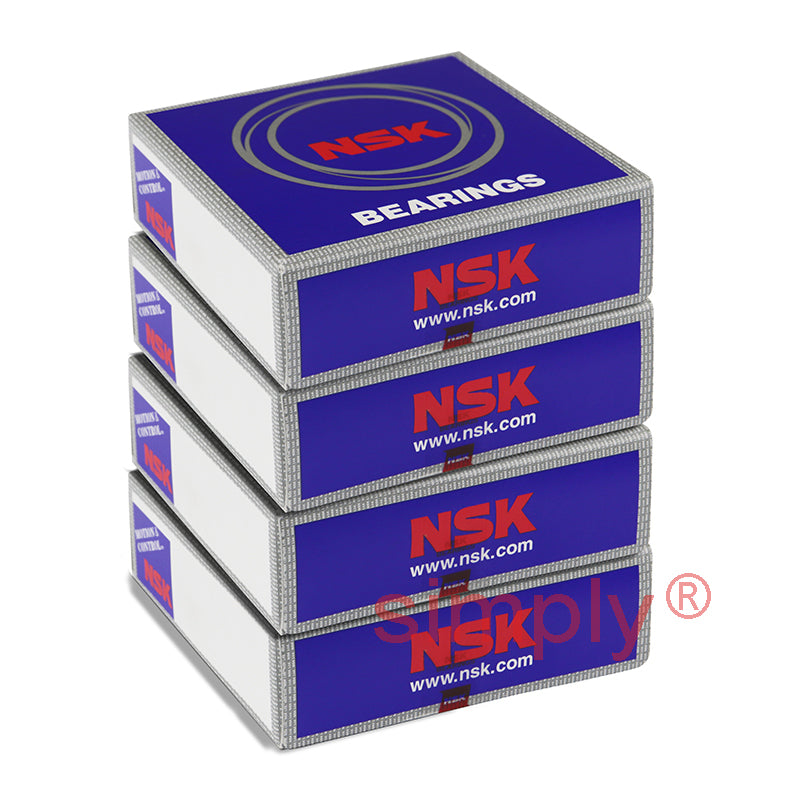

• NSK 7016A5SN24TRDBBLP3 Super Precision Angular Contact Spindle Bearing 80x125x22mm (Set of 4)
1 1

SKU: 7016A5SN24TRDBBLP3-NSK

NSK 7016A5SN24TRDBBLP3 Super Precision Angular Contact Spindle Bearing 80x125x22mm (Set of 4)

NSK 7016A5SN24TRDBBLP3 Super Precision Angular Contact Spindle Bearing 80x125x22mm (Set of 4)
€3.532,77 ex VAT
€3.532,77 ex VAT
Sale Sold out

In stock

Price Break
3+ €2.632,09
5+ €2.484,22
10+ €2.454,65
25+ €2.425,08
49+ €2.395,50
74+ €2.365,93
99+ €2.218,06
199+ €2.188,48
249+ €2.158,91
499+ €2.129,33
999+ €2.070,19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
80mm
Outside Diameter:
125mm
Width:
22mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 80mm
D 125mm
B 22mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> -58.5Kn
C<sub>or</sub> -52.5kN
Axial load Kn 48.3 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 34.9mm
Max speed in grease 12700 rpm
Max speed in oil 19100 rpm
--- Fitting dimensions
d<sub>a min</sub> 87mm
D<sub>a max</sub> 118mm
D<sub>b max</sub> 120mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 3.044kg
