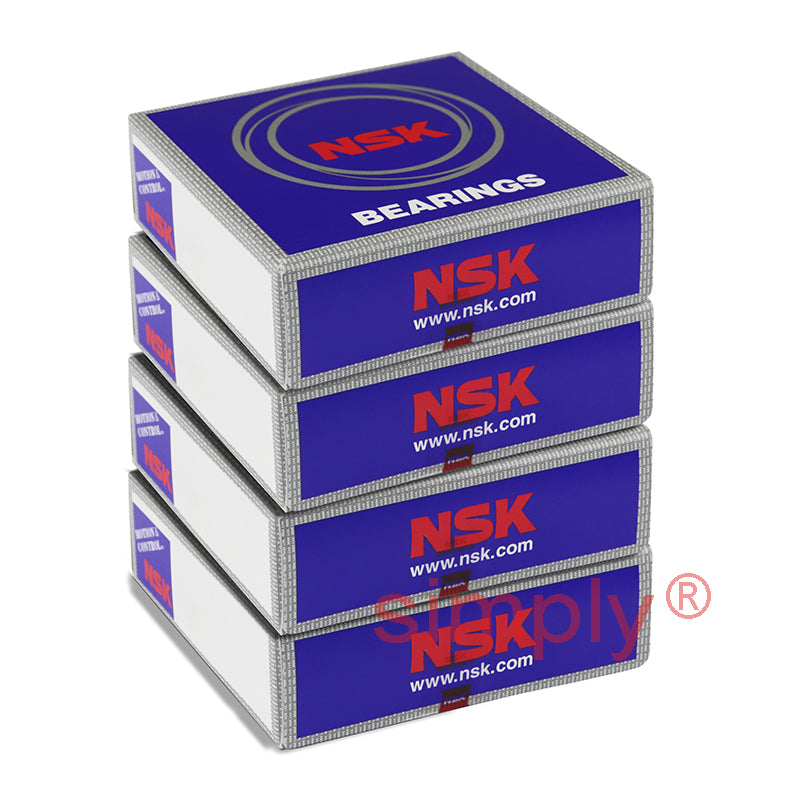

• NSK 7020CTRQULP3 Super Precision Angular Contact Spindle Bearing 100x150x24mm (Set of 4)
1 1

SKU: 7020CTRQULP3-NSK

NSK 7020CTRQULP3 Super Precision Angular Contact Spindle Bearing 100x150x24mm (Set of 4)

NSK 7020CTRQULP3 Super Precision Angular Contact Spindle Bearing 100x150x24mm (Set of 4)
€2.101,91 ex VAT
€2.101,91 ex VAT
Sale Sold out

In stock

Price Break
3+ €1.566,04
5+ €1.478,06
10+ €1.460,46
25+ €1.442,86
49+ €1.425,27
74+ €1.407,67
99+ €1.319,69
199+ €1.302,10
249+ €1.284,50
499+ €1.266,90
999+ €1.231,71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
100mm
Outside Diameter:
150mm
Width:
24mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 100mm
D 150mm
B 24mm
r<sub>min</sub> 1.5mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 79Kn
C<sub>or</sub> 77kN
Axial load Kn 49 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16
Effective diameter 28.7mm
Max speed in grease 9200 rpm
Max speed in oil 14000 rpm
--- Fitting dimensions
d<sub>a min</sub> 109mm
D<sub>a max</sub> 141mm
D<sub>b max</sub> 144mm
r<sub>a max</sub> 1.5mm
r<sub>b max</sub> 0.8mm
Weight 5.08kg
