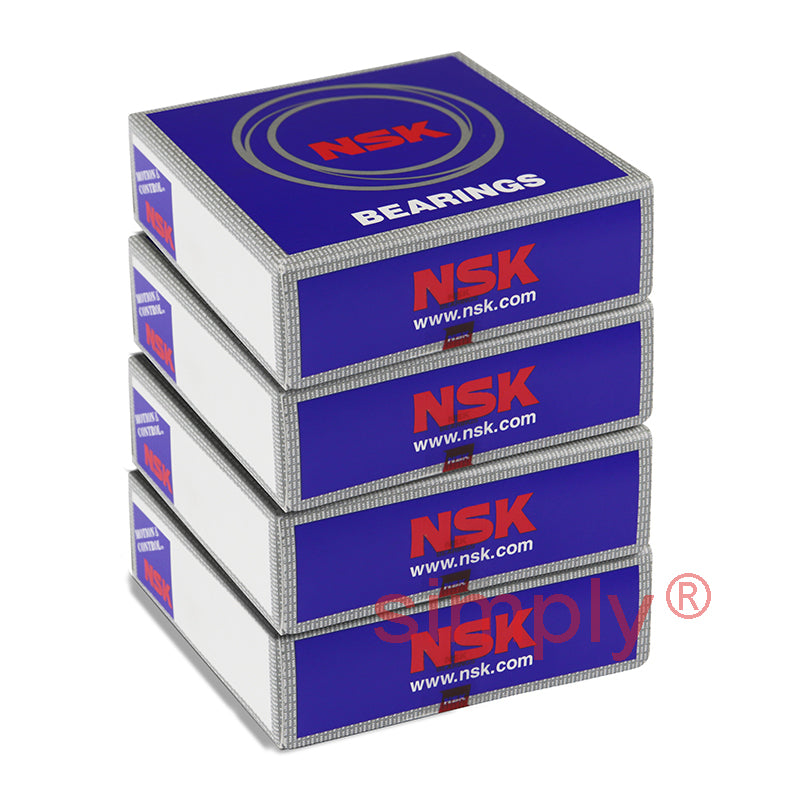

• NSK 7024A5SN24TRQULP3 Super Precision Angular Contact Spindle Bearing 120x180x28mm (Set of 4)
1 1

SKU: 7024A5SN24TRQULP3-NSK

NSK 7024A5SN24TRQULP3 Super Precision Angular Contact Spindle Bearing 120x180x28mm (Set of 4)

NSK 7024A5SN24TRQULP3 Super Precision Angular Contact Spindle Bearing 120x180x28mm (Set of 4)
€6.657,69 ex VAT
€6.657,69 ex VAT
Sale Sold out

In stock

Price Break
3+ €5.059,53
5+ €4.775,29
10+ €4.718,44
25+ €4.661,59
49+ €4.604,74
74+ €4.547,89
99+ €4.263,65
199+ €4.206,80
249+ €4.149,95
499+ €4.093,11
999+ €3.979,41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
120mm
Outside Diameter:
180mm
Width:
28mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 120mm
D 180mm
B 28mm
r<sub>min</sub> 2mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> -111Kn
C<sub>or</sub> -111kN
Axial load Kn 104 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 49mm
Max speed in grease 8700 rpm
Max speed in oil 13000 rpm
--- Fitting dimensions
d<sub>a min</sub> 130mm
D<sub>a max</sub> 170mm
D<sub>b max</sub> 174mm
r<sub>a max</sub> 2mm
r<sub>b max</sub> 1mm
Weight 8.32kg
