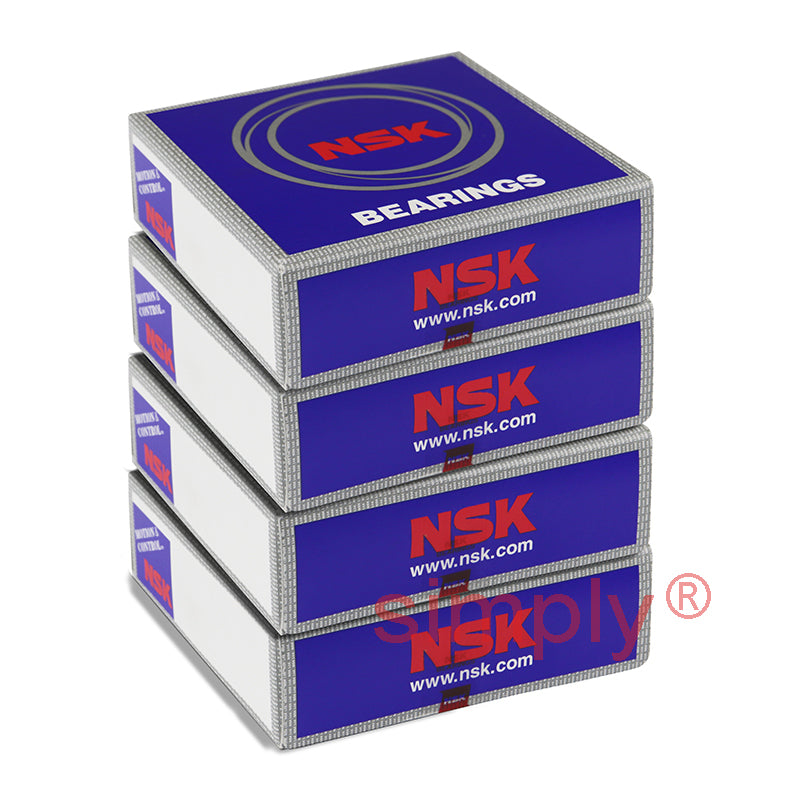

• NSK 7026A5TRQUHP3 Super Precision Angular Contact Spindle Bearing 130x200x33mm (Set of 4)
1 1

SKU: 7026A5TRQUHP3-NSK

NSK 7026A5TRQUHP3 Super Precision Angular Contact Spindle Bearing 130x200x33mm (Set of 4)

NSK 7026A5TRQUHP3 Super Precision Angular Contact Spindle Bearing 130x200x33mm (Set of 4)
€4.174,93 ex VAT
€4.174,93 ex VAT
Sale Sold out

In stock

Price Break
3+ €3.110,54
5+ €2.935,79
10+ €2.900,84
25+ €2.865,89
49+ €2.830,94
74+ €2.795,99
99+ €2.621,24
199+ €2.586,29
249+ €2.551,34
499+ €2.516,39
999+ €2.446,49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
130mm
Outside Diameter:
200mm
Width:
33mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Heavy preload
Technical
--- Bearing dimensions
d 130mm
D 200mm
B 33mm
r<sub>min</sub> 2mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 128Kn
C<sub>or</sub> 130kN
Axial load Kn 99.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 55mm
Max speed in grease 6100 rpm
Max speed in oil 9100 rpm
--- Fitting dimensions
d<sub>a min</sub> 140mm
D<sub>a max</sub> 190mm
D<sub>b max</sub> 194mm
r<sub>a max</sub> 2mm
r<sub>b max</sub> 1mm
Weight 14.64kg
