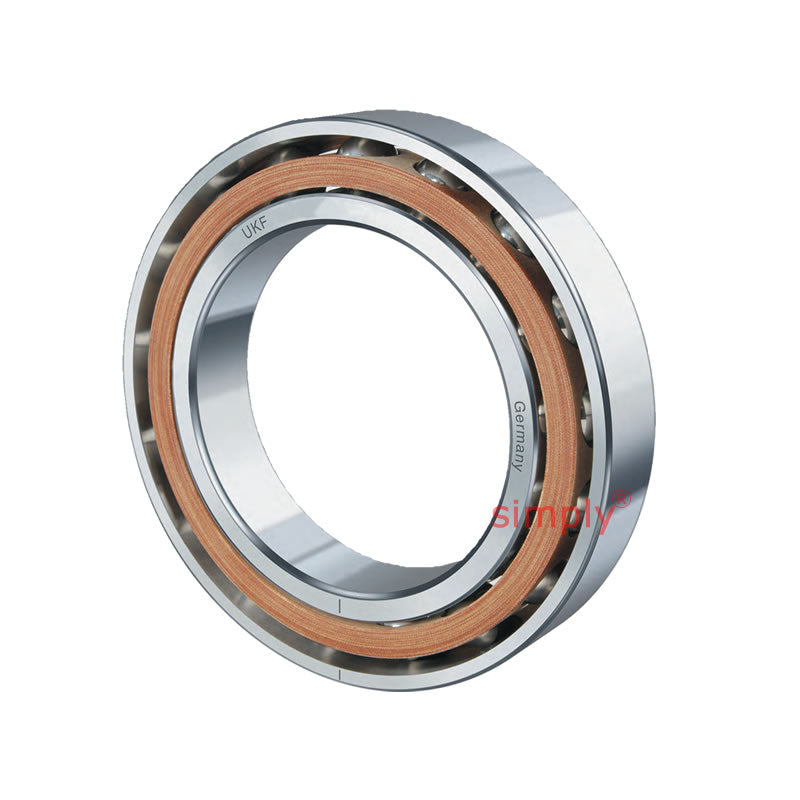

• UKF 70USS35A2100L Super Precision Angular Contact Spindle Bearing 35x62x14mm
1 1

SKU: 70USS35 .A21.0/0.L-UKF

UKF 70USS35A2100L Super Precision Angular Contact Spindle Bearing 35x62x14mm

UKF 70USS35A2100L Super Precision Angular Contact Spindle Bearing 35x62x14mm
€96,85 ex VAT
€96,85 ex VAT
Sale Sold out

Equivalent to: 70USS35 .A21.0/0.L

In stock

Price Break
3+ €73,61
5+ €69,47
10+ €68,64
25+ €67,82
49+ €66,99
74+ €66,16
99+ €62,03
199+ €61,20
249+ €60,37
499+ €59,55
999+ €57,89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UJZTL76NYY
Brand / Quality:
UKF - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
14mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
21 Degree contact angle
Bearing Preload:
Light preload
Technical
d 35mm
D 62mm
B 14mm
Dynamic load Co 13400 N
Static load C 18100 N
Speed in Grease 19500 rpm
Speed in Oil 29500 rpm
r<sub>a</sub> 1mm
d<sub>a</sub> 41.5mm
D<sub>a</sub> 55.5mm
Axial Preload F<sub>v</sub> L 120 N
Axial Preload F<sub>v</sub> M 350 N
Axial Preload F<sub>v</sub> S 700 N
Axial Rigidity R<sub>a</sub> L 68 N/&mu;m
Axial Rigidity R<sub>a</sub> M 91 N/&mu;m
Axial Rigidity R<sub>a</sub> S 120 N/&mu;m
Radial Rigidity R<sub>r</sub> L 275 N/&mu;m
Radial Rigidity R <sub>r</sub> M 390 N/&mu;m
Radial Rigidity <sub>r</sub> S 495 N/&mu;m
Weight 0.15 kg
