• UKF 70USS45A21IIL Super Precision Angular Contact Spindle Bearing 45x75x16mm
1 1

SKU: 70USS45 .A21.I/I.L-UKF

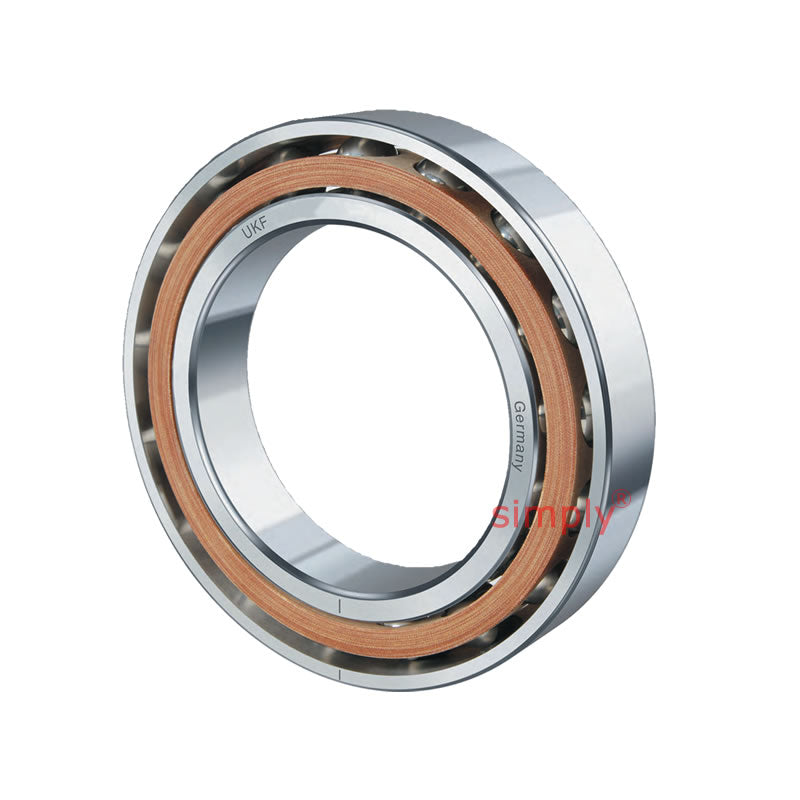

UKF 70USS45A21IIL Super Precision Angular Contact Spindle Bearing 45x75x16mm

UKF 70USS45A21IIL Super Precision Angular Contact Spindle Bearing 45x75x16mm
€107,31 ex VAT
€107,31 ex VAT
Sale Sold out

Equivalent to: 70USS45 .A21.I/I.L

In stock

Price Break
3+ €81,55
5+ €76,97
10+ €76,06
25+ €75,14
49+ €74,22
74+ €73,31
99+ €68,73
199+ €67,81
249+ €66,89
499+ €65,98
999+ €64,14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UJZTL76NYY
Brand / Quality:
UKF - High Quality
Inside Diameter:
45mm
Outside Diameter:
75mm
Width:
16mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
21 Degree contact angle
Bearing Preload:
Light preload
Technical
d 45mm
D 75mm
B 16mm
Dynamic load Co 19300 N
Static load C 25800 N
Speed in Grease 15500 rpm
Speed in Oil 24000 rpm
r<sub>a</sub> 1mm
d<sub>a</sub> 51.5mm
D<sub>a</sub> 68.5mm
Axial Preload F<sub>v</sub> L 170 N
Axial Preload F<sub>v</sub> M 500 N
Axial Preload F<sub>v</sub> S 1010 N
Axial Rigidity R<sub>a</sub> L 83 N/&mu;m
Axial Rigidity R<sub>a</sub> M 120 N/&mu;m
Axial Rigidity R<sub>a</sub> S 150 N/&mu;m
Radial Rigidity R<sub>r</sub> L 335 N/&mu;m
Radial Rigidity R <sub>r</sub> M 480 N/&mu;m
Radial Rigidity <sub>r</sub> S 610 N/&mu;m
Weight 0.24 kg
