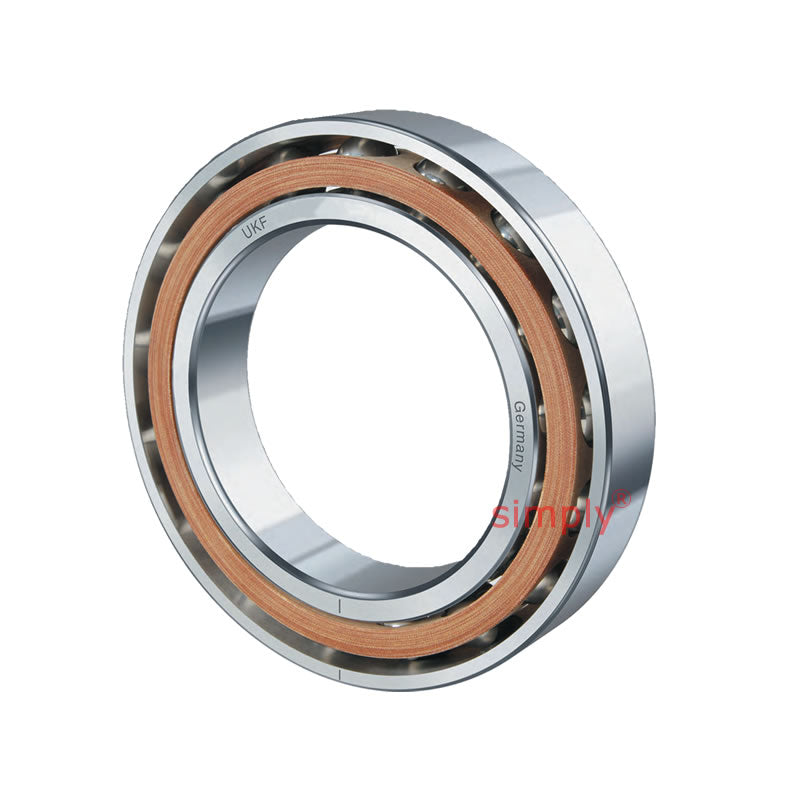

• UKF 70USS65A21I1L Super Precision Angular Contact Spindle Bearing 65x100x18mm
1 1

SKU: 70USS65 .A21.I/1.L-UKF

UKF 70USS65A21I1L Super Precision Angular Contact Spindle Bearing 65x100x18mm

UKF 70USS65A21I1L Super Precision Angular Contact Spindle Bearing 65x100x18mm
€144,49 ex VAT
€144,49 ex VAT
Sale Sold out

Equivalent to: 70USS65 .A21.I/1.L

In stock

Price Break
3+ €109,81
5+ €103,64
10+ €102,40
25+ €101,17
49+ €99,94
74+ €98,70
99+ €92,53
199+ €91,30
249+ €90,07
499+ €88,83
999+ €86,37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UJZTL76NYY
Brand / Quality:
UKF - High Quality
Inside Diameter:
65mm
Outside Diameter:
100mm
Width:
18mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
21 Degree contact angle
Bearing Preload:
Light preload
Technical
d 65mm
D 100mm
B 18mm
Dynamic load Co 28600 N
Static load C 32500 N
Speed in Grease 11000 rpm
Speed in Oil 17500 rpm
r<sub>a</sub> 1mm
d<sub>a</sub> 72mm
D<sub>a</sub> 93mm
Axial Preload F<sub>v</sub> L 250 N
Axial Preload F<sub>v</sub> M 760 N
Axial Preload F<sub>v</sub> S 1540 N
Axial Rigidity R<sub>a</sub> L 115 N/&mu;m
Axial Rigidity R<sub>a</sub> M 170 N/&mu;m
Axial Rigidity R<sub>a</sub> S 205 N/&mu;m
Radial Rigidity R<sub>r</sub> L 455 N/&mu;m
Radial Rigidity R <sub>r</sub> M 660 N/&mu;m
Radial Rigidity <sub>r</sub> S 830 N/&mu;m
Weight 0.43 kg
