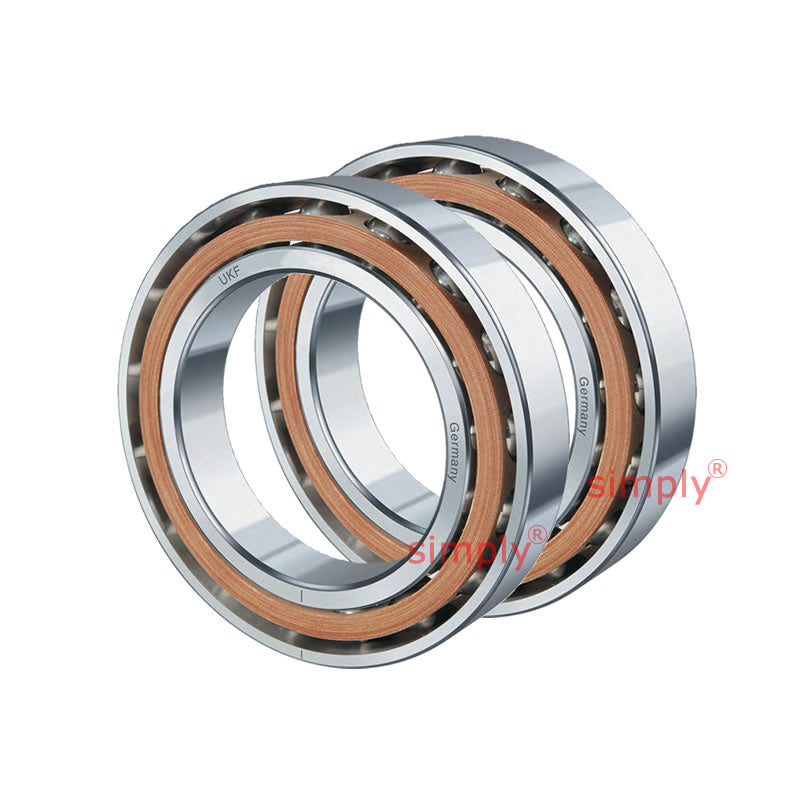

• UKF 70USS80A21LB0IDBL Super Precision Angular Contact Spindle Bearing 80x125x22mm
1 1

SKU: 70USS80 .A21.LB.0/I.DB.L-UKF

UKF 70USS80A21LB0IDBL Super Precision Angular Contact Spindle Bearing 80x125x22mm

UKF 70USS80A21LB0IDBL Super Precision Angular Contact Spindle Bearing 80x125x22mm
€560,51 ex VAT
€560,51 ex VAT
Sale Sold out

Equivalent to: 70USS80 .A21.LB.0/I.DB.L

In stock

Price Break
3+ €425,96
5+ €402,03
10+ €397,25
25+ €392,46
49+ €387,67
74+ €382,89
99+ €358,96
199+ €354,17
249+ €349,38
499+ €344,60
999+ €335,03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UJZTL76NYY
Brand / Quality:
UKF - High Quality
Inside Diameter:
80mm
Outside Diameter:
125mm
Width:
22mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
21 Degree contact angle
Bearing Preload:
Light preload
Technical
d 80mm
D 125mm
B 22mm
Dynamic load Co 50500 N
Static load C 57100 N
Speed in Grease 9000 rpm
Speed in Oil 14000 rpm
r<sub>a</sub> 1mm
d<sub>a</sub> 89mm
D<sub>a</sub> 116mm
Axial Preload F<sub>v</sub> L 410 N
Axial Preload F<sub>v</sub> M 1260 N
Axial Preload F<sub>v</sub> S 2520 N
Axial Rigidity R<sub>a</sub> L 140 N/&mu;m
Axial Rigidity R<sub>a</sub> M 205 N/&mu;m
Axial Rigidity R<sub>a</sub> S 255 N/&mu;m
Radial Rigidity R<sub>r</sub> L 570 N/&mu;m
Radial Rigidity R <sub>r</sub> M 820 N/&mu;m
Radial Rigidity <sub>r</sub> S 1040 N/&mu;m
Weight 0.87 kg
