• UKF 70USS90A2100M Super Precision Angular Contact Spindle Bearing 90x140x24mm
1 1

SKU: 70USS90 .A21.0/0.M-UKF

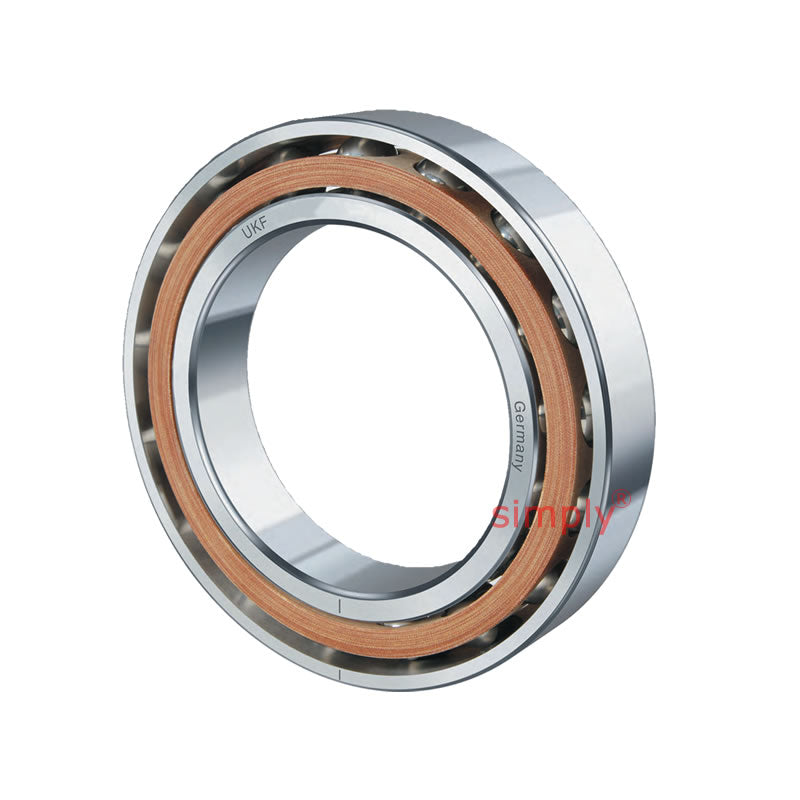

UKF 70USS90A2100M Super Precision Angular Contact Spindle Bearing 90x140x24mm

UKF 70USS90A2100M Super Precision Angular Contact Spindle Bearing 90x140x24mm
€294,63 ex VAT
€294,63 ex VAT
Sale Sold out

Equivalent to: 70USS90 .A21.0/0.M

In stock

Price Break
3+ €223,90
5+ €211,33
10+ €208,81
25+ €206,29
49+ €203,78
74+ €201,26
99+ €188,68
199+ €186,17
249+ €183,65
499+ €181,14
999+ €176,10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UJZTL76NYY
Brand / Quality:
UKF - High Quality
Inside Diameter:
90mm
Outside Diameter:
140mm
Width:
24mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
21 Degree contact angle
Bearing Preload:
Medium preload
Technical
d 90mm
D 140mm
B 24mm
Dynamic load Co 69000 N
Static load C 69600 N
Speed in Grease 8000 rpm
Speed in Oil 12500 rpm
r<sub>a</sub> 1.2mm
d<sub>a</sub> 100mm
D<sub>a</sub> 130mm
Axial Preload F<sub>v</sub> L 510 N
Axial Preload F<sub>v</sub> M 1520 N
Axial Preload F<sub>v</sub> S 3040 N
Axial Rigidity R<sub>a</sub> L 170 N/&mu;m
Axial Rigidity R<sub>a</sub> M 245 N/&mu;m
Axial Rigidity R<sub>a</sub> S 310 N/&mu;m
Radial Rigidity R<sub>r</sub> L 690 N/&mu;m
Radial Rigidity R <sub>r</sub> M 990 N/&mu;m
Radial Rigidity <sub>r</sub> S 1250 N/&mu;m
Weight 1.15 kg
